Cast Steel Stainless Steel Check Valve Cf8 Steam High Pressure Check Valve

Cast Steel Stainless Steel Check Valve Cf8 Steam High Pressure Check Valve

  • Cast Steel Stainless Steel Check Valve Cf8 Steam High Pressure Check Valve
  • Cast Steel Stainless Steel Check Valve Cf8 Steam High Pressure Check Valve
  • Cast Steel Stainless Steel Check Valve Cf8 Steam High Pressure Check Valve
  • Cast Steel Stainless Steel Check Valve Cf8 Steam High Pressure Check Valve
Cast Steel Stainless Steel Check Valve Cf8 Steam High Pressure Check Valve
Product Details:
Place of Origin: Sichuan, China
Brand Name: CD-CNLN
Model Number: CDH22W-160P
Payment & Shipping Terms:
Minimum Order Quantity: 1 - 9 Sets
Price: $90.00
Packaging Details: Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available
Supply Ability: 100 Set/Sets per Day High Quality Cryogenic High Pressure Check Valves Manufacturer
Contact Now
Detailed Product Description
Name: Cf8 Steam Manufacturer High Pressure Cast Steel SS Check Valve Design Face-to-face Confor: Customize
Type: Check Valves Seal Material: PTFE
Disc: 06Cr19Ni10/customize Body: CF8/customize
Working Temperature: -196℃~+80℃ Nominal Pressure: PN4.0MPa
High Light:

stainless steel check valve

,

high pressure check valve

Cast Steel Stainless Steel Check Valve Cf8 Steam High Pressure Check Valve



China wholesale Cryogenic High Pressure Check Valves Price

Product Description

Valve Type:Check Valve

Connection Type: Welding

Nominal Diameter:DN15mm~DN65mm

Nominal Pressure:PN4.0MPa

Material:                                                                                                                              Valve Body:CF8;
Valve Disc:06Cr19Ni10;
Stuffing:PTFE;

Suitable Medium:LO2,LN2,LAr,LNG,LCO2,etc

Suitable Temparature:(-196℃~+80℃)

Design and Manufacture:Conform to GB/T24925-2010

Testing:Conform to GB/T13927-2008

Valve Lifetime:Specified according to usage frequency

and installation location

Lead Time:Customized valves are usually 30~45 days;  Stock valves are usually within 5 days.



Valves Display

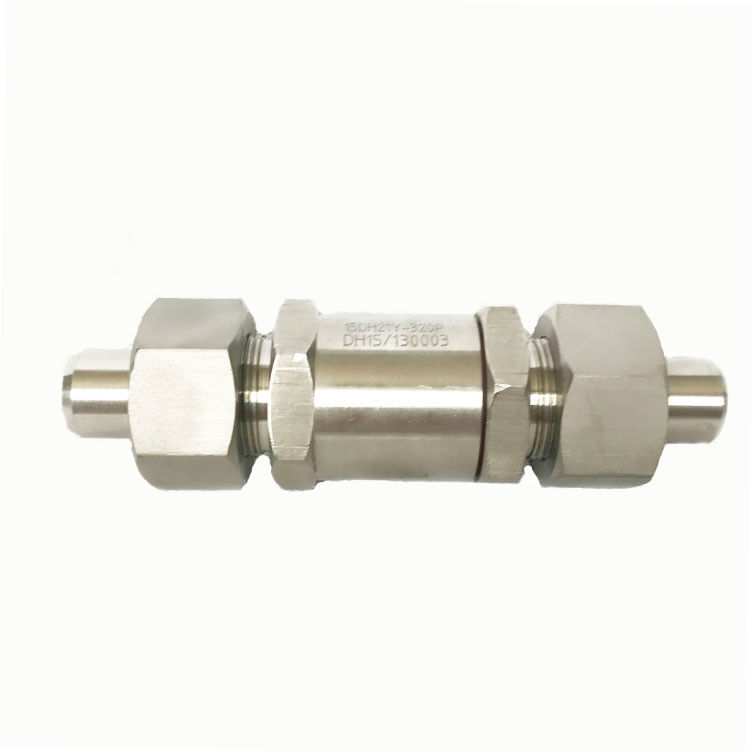

Cast Steel Stainless Steel Check Valve Cf8 Steam High Pressure Check Valve 0

Valve Specification



Product Code

DN

H

L

B

D0

D1

D2

D3

C325DH10

10

90

114

10

13

18

42

85

C325DH15

15

90

114

10

17

22

42

85

C325DH20

20

118

130

10

21

26

66

98

C325DH25

25

118

130

10

28

33

66

98

Company production

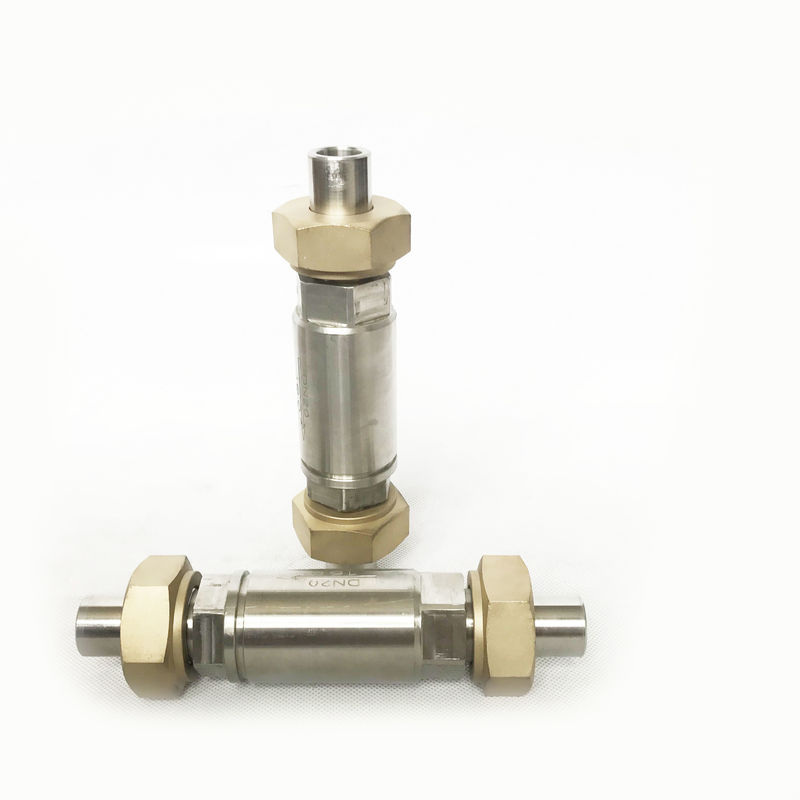

Cast Steel Stainless Steel Check Valve Cf8 Steam High Pressure Check Valve 1

Package

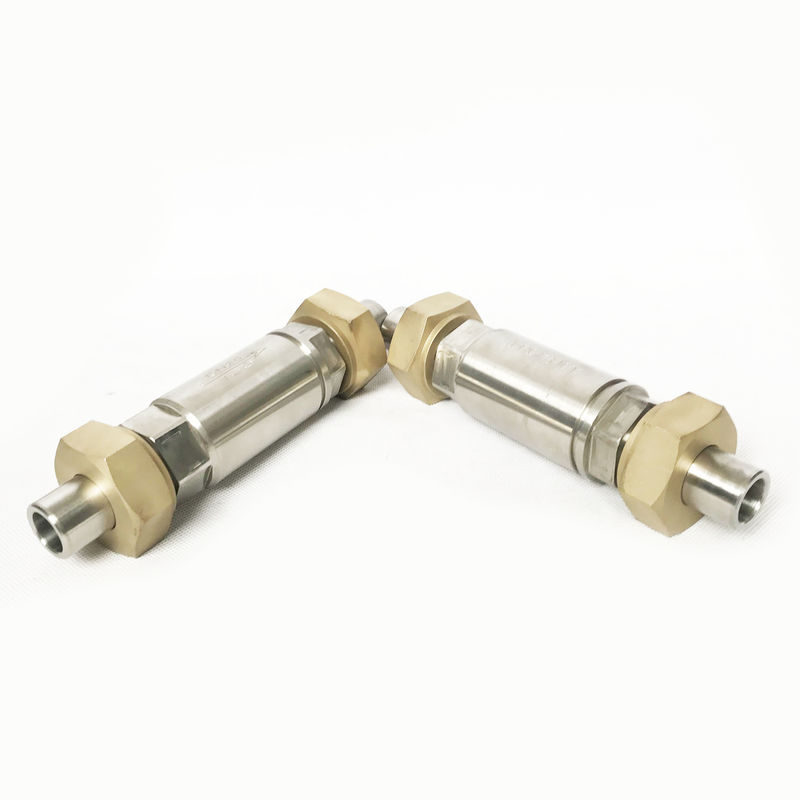

Cast Steel Stainless Steel Check Valve Cf8 Steam High Pressure Check Valve 2

Thank you so much for your attention, for more information, please click " Contact Now"
