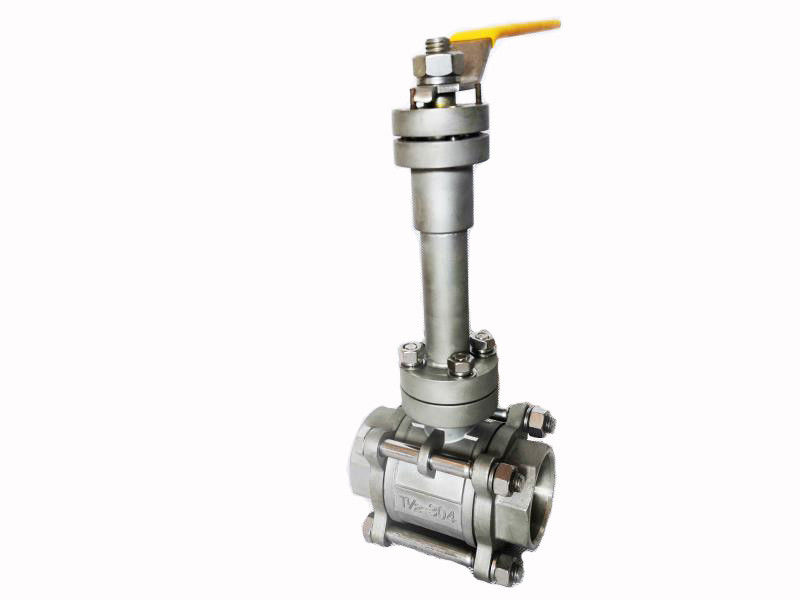

Manual Power Dn25 Cryogenic Ball Valve New Type Stainless Steel Material

Manual Power Dn25 Cryogenic Ball Valve New Type Stainless Steel Material

three way ball valve

welded ball valve

Manual Dn25 Cryogenic Ball Valve

Place of Origin:

CHINA-CHENGDU

Brand Name:

CNLN

Certification:

CE/ISO/EAC

Model Number:

CJ61F

Contact Us
Request A Quote
Product Details
Power:
Manual
Material:
Stainless Steel
Connection:
SW/BW/flange
Application:
Industry
Standard Or Nonstandard:
Standard
Valve Logo:
Customer Request
Structure:
Ball
Temperature Of Media:
Low Temperature
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
USD120 per pc
Packaging Details
Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for valves are available
Delivery Time
5-8 work days
Payment Terms
T/T
Supply Ability
3000pcs per month
Product Description

Si Chuan Liangchuan Mechanical Equipment Co.,Ltd is a high-tech company specializing in the production of many kinds of valves for more than 12 years, especially cryogenic valves. The main products are cryogenic valves, gate valves, globe valves, ball valves, butterfly valves, check valves, safety valves with different connection types,etc. We have many national technology patents. And we also established and improved the special equipment manufacturing management system and ISO 9001 international quality system and passed the certifications. In 2015, we have passed the certification of High Technology Enterprise. And CE(ECM) in 2018, EAC in 2022. Liangchuan has established a strict and complete test organization, in order to ensure that the products’ qualities are in line with relevant national standards, industry standards and your standards.Manual Power Dn25 Cryogenic Ball Valve New Type Stainless Steel Material 0Manual Power Dn25 Cryogenic Ball Valve New Type Stainless Steel Material 1



Manual Power Dn25 Cryogenic Ball Valve New Type Stainless Steel Material





Stainless Steel DN25 Cryogenic New Type Ball Valve Logo Customization Available





The low temperature ball valve is suitable for various pipelines, used to cut off or connect the medium in the pipeline. Selecting different materials can be suitable for different temperatures and media, the minimum working temperature is -196 ℃. The cryogenic ball valve is driven by manual, worm gear, pneumatic or electric. Cryogenic ball valves are generally flanged or welded.





Features :


1 . The structure of reducing pressure holes in the valve core is adopted.


2 . The stem height is the optimal length obtained through calculation and testing.


3 . The gasket is made of ceramic filling material with stable sealing properties.


4 . In order to reduce the heat loss of the valve body, especially to ensure the use of the valve at ultra-low temperature, the valve body is specially designed to be light in weight and small in size.


5 . The long-shaft valve has a valve through which low-temperature fluid flows. The long stem is used to avoid the effect of external heat to keep the gland at normal temperature to prevent the performance of the cap seal from decreasing.




Customer Notice:


1. If customers have special requirements for products, they must provide the following instructions in the order contract:
a. Structure length
b. Connection Type;
c. Nominal diameter
d. Product use medium and temperature and pressure range;
e. Testing, inspection standards and other requirements.



2. The factory can configure various driving devices according to customer specific requirements.


3. If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract on the condition that the supply and demand sides understand and agree.


4. For futures and ordering customers, please call the letter to tell the valve model, specifications, quantity, delivery time and place in detail. And advance payment of 30% of the total contract amount, the supplier is ready for production.





Notes When Use


1 . It should ensure that the pipe is blown clean before installation.



2 . When installing, make sure that the flow direction indicated by the arrow on the valve body should be consistent with the flow direction of the fluid.



3 . This valve has been degreased. Store and keep clean when installing.



4 . After the pipeline construction is completed, all the valves on the pipeline should be opened, and the residue in the pipeline should be thoroughly and thoroughly kept to ensure that the pipeline system is clean and free of debris.

Factory Information

Enterprise mission:

Making technology products and building green home

Business philosophy:

Professional, Focused, Honest, Pragmatic

Corporate purposes:

People-oriented Pursuit of excellence



Manual Power Dn25 Cryogenic Ball Valve New Type Stainless Steel Material 2Manual Power Dn25 Cryogenic Ball Valve New Type Stainless Steel Material 3







FAQ



Q. Are there any special requirements for OEM purchases?
A. Yes. Liangchuan requires proof of trademark registration in order to print or emboss your trademark onto the product or packaging.

Q. Do Liangchuan products come with a warranty ?
A. Yes. That's why we offer 3-year product life guarantee, and a generous1 year warranty on all purchases that begins with the bill of loading.

Q . Do you support customization?


A . Yes, customization is acceptable.


Q . Can you advise suitable cryogenic valves to me?


A . We have more than 12 years experience in cryogenic field. We are professional in valve selection and will advise you suitable valves with         detailed parameters and prices.


Q . How long is your delivery time?


A . It usually takes 5-30 days depending on the quantity of the order and the stock.
