Water Heater Emergency Cryogenic Shut Off Valve Ss304 Ss316 Material Dn10 - Dn100mm

Water Heater Emergency Cryogenic Shut Off Valve Ss304 Ss316 Material Dn10 - Dn100mm

emergency cut off valve

emergency water shut off valve

Place of Origin:

CHINA

Brand Name:

CNLN

Certification:

CE/ISO

Model Number:

Shut off valve

Contact Us
Request A Quote
Product Details
Power:
Manual
Material:
Stainless Steel
Structure:
SHUT OFF
Application:
Industry
Standard Or Nonstandard:
Standard
Valve Color:
Customer Request
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
USD230 PER PC
Packaging Details
Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for valves are available
Delivery Time
5-8 work days
Payment Terms
T/T
Supply Ability
3000pcs per month
Product Description

Water Heater Emergency Shut Off Valve Ss304 Ss316 Material Dn10 - Dn100mm



SS304/316 DN10-DN100 Cryogenic Emergency Shut-off Valve for Tank



Manufacturing and testing of cryogenic valves:



Liang Chuan Company strict manufacturing process and special equipment are adopted for the produced low-temperature valves, and the quality of parts is strictly controlled. After special low temperature treatment, the rough parts are placed in the cooling medium for several hours (2-6 hours) to release the stress, ensure the low temperature performance of the material, and ensure the finished size to prevent the valve from working in low temperature conditions. Leakage due to deformation due to temperature changes. The valve assembly is also different from ordinary valves. Parts need to be strictly cleaned to remove any oil stains to ensure performance.



Notes When Use


1 . It should ensure that the pipe is blown clean before installation.



2 . When installing, make sure that the flow direction indicated by the arrow on the valve body should be consistent with the flow direction of the fluid.



3 . This valve has been degreased. Store and keep clean when installing.



4 . After the pipeline construction is completed, all the valves on the pipeline should be opened, and the residue in the pipeline should be thoroughly and thoroughly kept to ensure that the pipeline system is clean and free of debris.



5 . The installation system diagram with the oil-free requirements should be degreased.



6 . Slowly open and close during use.



7 . If the precision parts such as the valve disc, valve seat and valve stem are worn or damaged, it must be repaired and replaced in time.



8 . For parts such as gaskets and sealing materials, replace them with new ones each time.



Valve Type: shut-off valve
Operated Type: Handwheel
Connection Type: Welding
Structure Type: Through Way Type
Nominal Diameter: DN10~100mm
Nominal Pressure: PN4.0MPa
CL300
Material: Valve Body:ZGOCr18Ni9
Valve Bonnet:OCr18Ni9
Valve Stem:OCr18Ni9
Stuffing:PTFE
Disc seal ring:PCTFE
Suitable Medium: LO2,LN2,LAr,LNG,LC2H4,etc
Suitable Temparature: (-196~+80)
Design and Manufacture: Conform to GB/T24925-2010
Testing: Conform to GB/T13927-2008
Valve Lifetime: Specified according to usage frequency and installation location
Lead Time:

Customized valves are usually 30~45 days;

Stock valves are usually within 5 days.

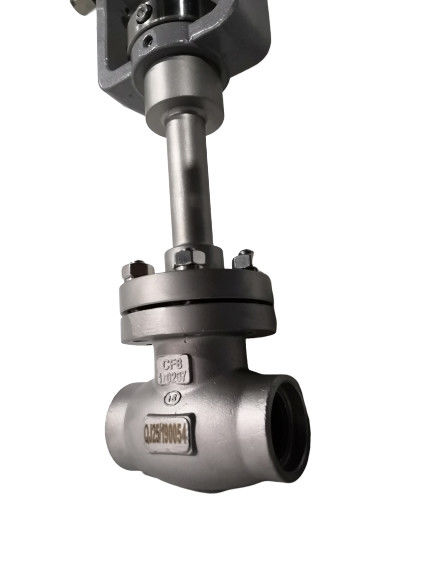

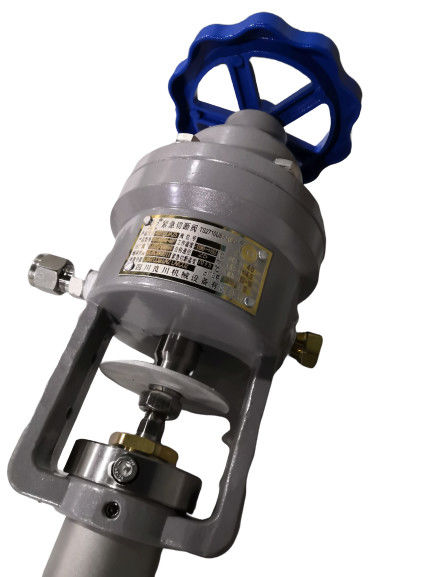

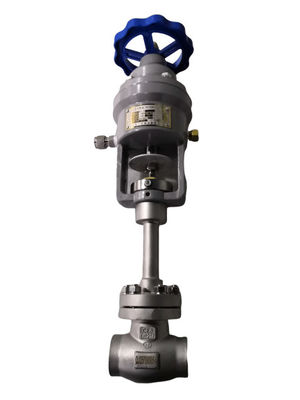

product show



Water Heater Emergency Cryogenic Shut Off Valve Ss304 Ss316 Material Dn10 - Dn100mm 0

TEST



Water Heater Emergency Cryogenic Shut Off Valve Ss304 Ss316 Material Dn10 - Dn100mm 1


Valve Package

Water Heater Emergency Cryogenic Shut Off Valve Ss304 Ss316 Material Dn10 - Dn100mm 2

Company Information







1 (43)



FAQ

Q. Are there any special requirements for OEM purchases?
A. Yes. Liangchuan requires proof of trademark registration in order to print or emboss your trademark onto the product or packaging.



Q. Do Liangchuan products come with a warranty ?
A. Yes. That's why we offer 1-year product life guarantee, and a generous1 year warranty on all purchases that begins with the bill of loading.



Q . Do you support customization?

A . Yes, customization is acceptable.


Q . Can you advise suitable cryogenic valves to me?

A . We have more than 8 years experience in cryogenic field. We are professional in valve selection and will advise you suitable valves with detailed parameters and prices.


Q . How long is your delivery time?

A . It usually takes 5-30 days depending on the quantity of the order and the stock.
