LO2 LN2 Cryogenic One Way Water Check Valve The Flange Connection CF8 Body

LO2 LN2 Cryogenic One Way Water Check Valve The Flange Connection CF8 Body

industrial check valve

high pressure check valve

LO2 LN2 Water Check Valve

Place of Origin:

Sichuan, China

Brand Name:

CD-CNLN

Certification:

CE/ISO9001

Model Number:

CDH22W-160P

Contact Us
Request A Quote
Product Details
Pressure:
High Pressure
Structure:
Check
Medium:
LO2,LN2,LAr,LNG,LCO2,etc
Seal Material:
PTFE
Disc:
06Cr19Ni10
Body:
CF8
Working Temperature:
-196℃~+80℃
Nominal Pressure:
PN4.0MPa
Payment & Shipping Terms
Minimum Order Quantity
1 - 9 Sets
Price
$90.00
Packaging Details
Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available
Delivery Time
5-8DAYS
Payment Terms
T/T
Supply Ability
100 Set/Sets per Day High Quality Cryogenic High Pressure Check Valves Manufacturer
Product Description

LO2 LN2 Cryogenic One Way Water Check Valve The Flange Connection CF8 Body



OEM SS304 Cryogenic High Pressure Check Valves Customization Available

Product Description



Structure description


During the use of this valve, the medium flows in the direction of the arrow shown in the figure.



1. When the medium flows in the prescribed direction, the valve disc is opened by the force of the medium; when the medium is flowing backward, the valve disc is tightly sealed with the valve seat due to the weight of the valve disc and the reverse force of the medium Closed together to achieve the purpose of preventing the medium from flowing back.



2. The sealing surfaces of the valve body and disc are made of stainless steel.



3. The structural length of this valve is in accordance with GB12221-1989, and the flange connection size is in accordance with JB / T79-1994.





Customer Notice:


1. If customers have special requirements for products, they must provide the following instructions in the order contract:
a. Structure length
b. Connection Type;
c. Nominal diameter
d. Product use medium and temperature and pressure range;
e. Testing, inspection standards and other requirements.



2. The factory can configure various driving devices according to customer specific requirements.


3. If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract on the condition that the supply and demand sides understand and agree.


4. For futures and ordering customers, please call the letter to tell the valve model, specifications, quantity, delivery time and place in detail. And advance payment of 30% of the total contract amount, the supplier is ready for production.





            LO2 LN2 Cryogenic One Way Water Check Valve The Flange Connection CF8 Body 0

Valve Type:Check Valve

Connection Type: Welding

Nominal Diameter:DN15mm~DN65mm

Nominal Pressure:PN32MPa

Material:                                                                                                                              Valve Body:CF8;
Valve Disc:06Cr19Ni10;
Stuffing:PTFE;

Suitable Medium:LO2,LN2,LAr,LNG,LCO2,etc

Suitable Temparature:(-196℃~+80℃)

Design and Manufacture:Conform to GB/T24925-2010

Testing:Conform to GB/T13927-2008

Valve Lifetime:Specified according to usage frequency

and installation location

Lead Time:Customized valves are usually 30~45 days;  Stock valves are usually within 5 days.

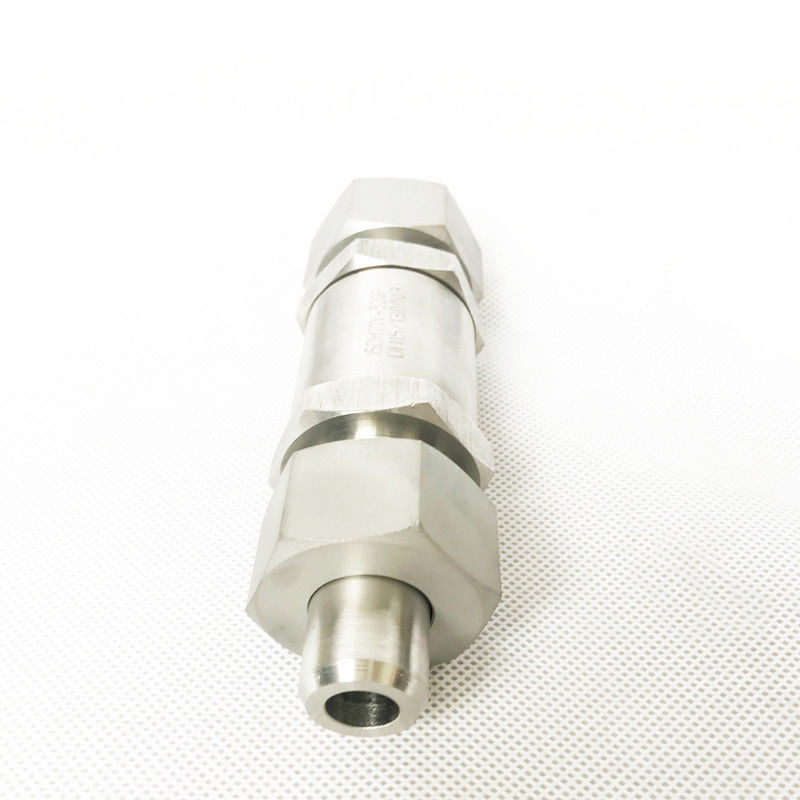

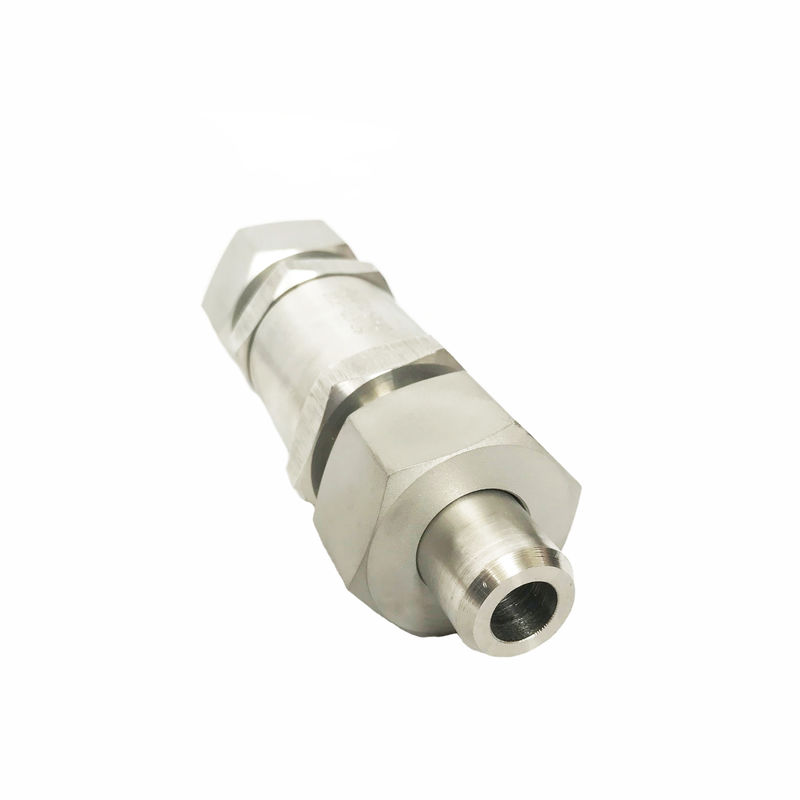

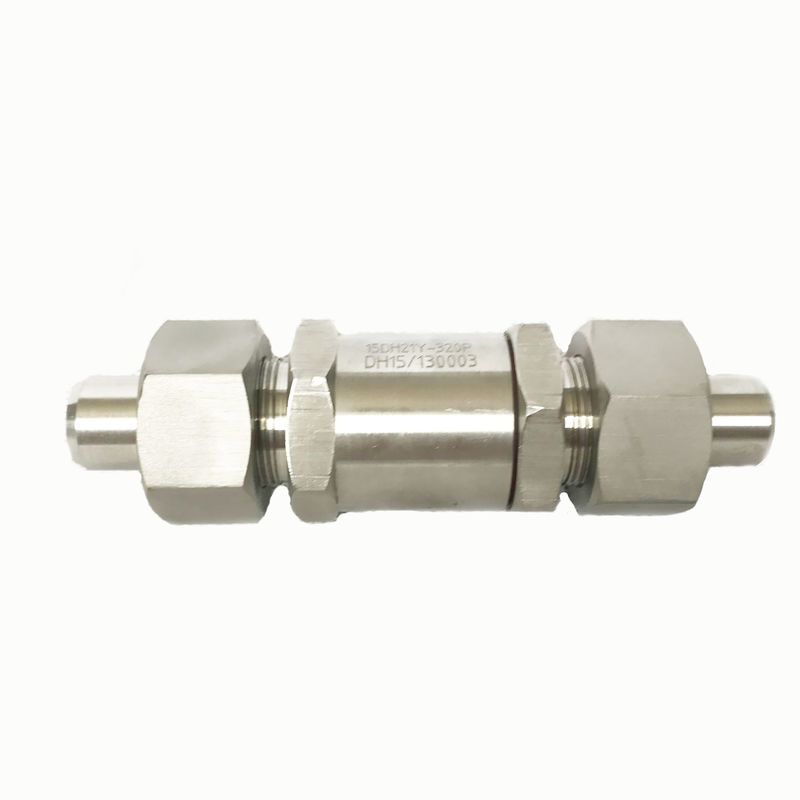

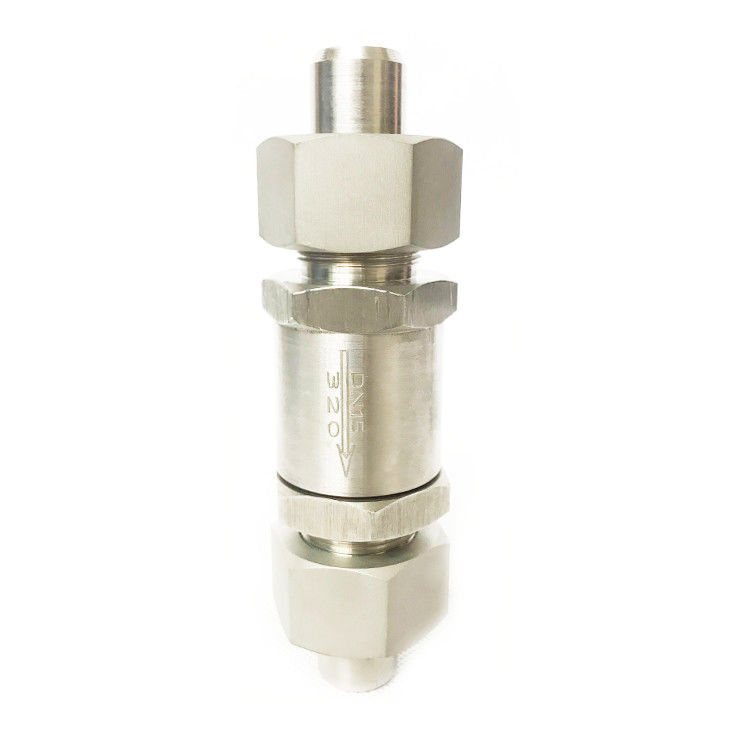

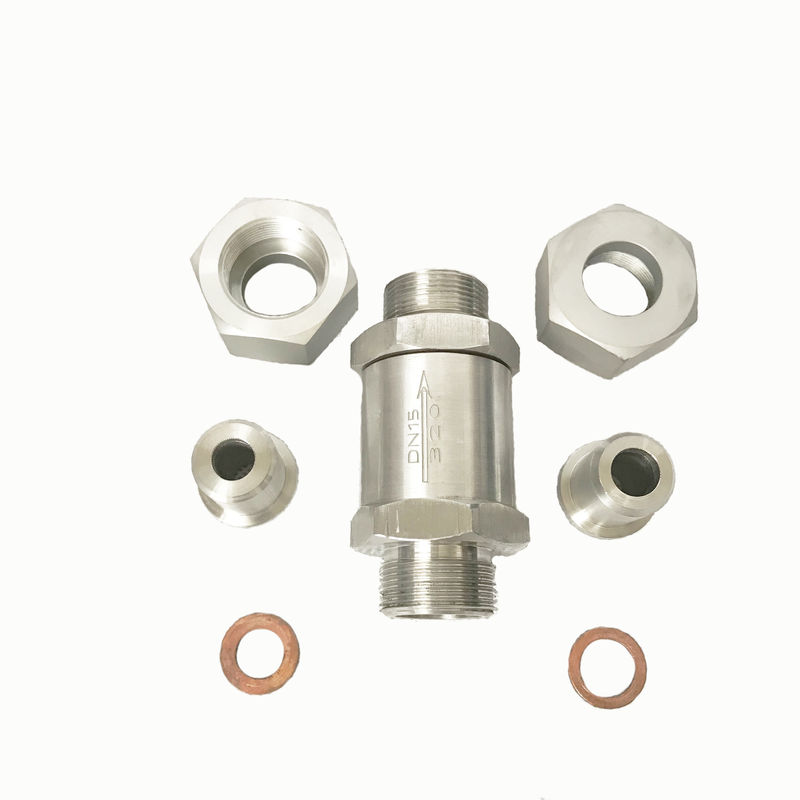

Valves Display













Valve Specification

LO2 LN2 Cryogenic One Way Water Check Valve The Flange Connection CF8 Body 1



Product Code

DN

H

L

B

D0

D1

D2

D3

C325DH10

10

90

114

10

13

18

42

85

C325DH15

15

90

114

10

17

22

42

85

C325DH20

20

118

130

10

21

26

66

98

C325DH25

25

118

130

10

28

33

66

98





Company Information

Si Chuan Liangchuan Mechanical Equipment Co.,Ltd  is a high-tech company specializing in the production of many kinds of valves,especially cryogenic valves.The main products are cryogenic valves,gate valves,globe valves,ball valves,butterfly valves, check valves,safety valves,etc.Our company has many national technology patents.And our company has established and improved the special equipment manufacturing management system and ISO 9001 international quality system and passed the certifications.In 2015,we have passed the certification of High Technology Enterprise.Liangchuan has established a strict and complete test organization, in order to ensure that the product quality is in line with relevant national standards,industry standards and corporation standards.



Notes When Use

1. It should ensure that the pipe is blown clean before installation.


2. When installing, make sure that the flow direction indicated by the arrow on the valve body should be consistent with the flow direction of the fluid.


3. This valve has been degreased. Store and keep clean when installing.


4. After the pipeline construction is completed, all the valves on the pipeline should be opened, and the residue in the pipeline should be thoroughly and thoroughly kept to ensure that the pipeline system is clean and free of debris.


5. The installation system diagram with the oil-free requirements should be degreased.


6. Slowly open and close during use.


7. If the precision parts such as the valve disc, valve seat and valve stem are worn or damaged, it must be repaired and replaced in time.


8. For parts such as gaskets and sealing materials, replace them with new ones each time.
