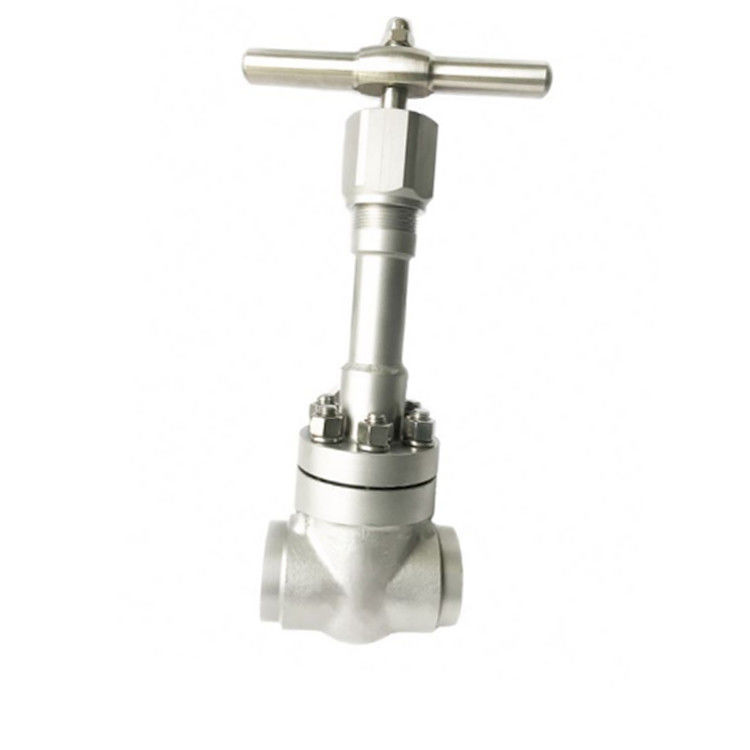

Handwheel Operated 316 304 Stainless Steel Cryogenic Globe Valve

Handwheel Operated 316 304 Stainless Steel Cryogenic Globe Valve

    • Handwheel Operated 316 304 Stainless Steel Cryogenic Globe Valve
  • Handwheel Operated 316 304 Stainless Steel Cryogenic Globe Valve

    Product Details:

    Place of Origin: China
    Brand Name: CD-CNLN
    Certification: CE/ISO/Original certificate
    Model Number: Customize

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: 1-100
    Packaging Details: Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve;
    Delivery Time: 2-3days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 100pcs one day
    Contact Now
    Detailed Product Description
    Name: Handwheel High Pressure 1 Inch 316 304 Stainless Steel Cryogenic Globe Valve Key Word1: Stainless Steel Cryogenic Globe Valve
    Key Word2: High Pressure Stainless Steel Cryogenic Globe Valve Temperature Range: Customize
    Nominal Pressure: Customize Pressure Medium Flow: Customize Ways
    Model: Customize Logo: Customize Logo
    Pressure: PN50
    High Light:

    Stainless Steel Cryogenic Globe Valve

    ,

    Handwheel Operated Cryogenic Globe Valve

    ,

    CE Cryogenic Control Valve

    Handwheel Operated 316 304 Stainless Steel Cryogenic Globe Valve



    Data Of Cryogenic Globe Valve
    SPECIFICATIONS FOR CRYOGENIC GLOBE VALVES
    Name Handwheel High Pressure customized Inch 316 304 Stainless Steel Cryogenic Globe Valve
    Key word1 Handwheel Cryogenic Globe Valve
    Key word2 High Pressure Cryogenic Globe Valve
    Withstand temperature -196 °C- +80°C
    Disc seal PCTFE
    Cover SS304/316
    Connection way welding
    Medium LNG/LO2/LN2/LARETC



    Introduction Of Cryogenic Glove Valve

    High-pressure shut-off valve refers to a valve in which the closing member (valve) moves along the center line of the valve seat. According to this form of movement of the valve flap, the change of the valve seat port is directly proportional to the stroke of the valve flap. The valve has a very reliable shut-off function



    Detaile Of Cryogenic Globe Valve

    High-pressure shut-off valve refers to a valve in which the closing member (valve) moves along the center line of the valve seat. According to this form of movement of the valve flap, the change of the valve seat port is directly proportional to the stroke of the valve flap. The relative error of the rod opening or closing stroke, and has a very reliable cut-off function, and because the change of the valve seat port is directly proportional to the stroke of the valve flap, it is very suitable for adjusting the flow rate. Therefore, this type of valve is a very special high-pressure shut-off valve as one of the important cut-off valves, which plays an important role in the aerospace field. As an important component of the aerospace equipment, the final valve realizes medium delivery, termination, and adjustment. Research on the influencing factors and influencing laws of the typical stop valve sealing characteristics has a guiding significance for the structural design of the valve sealing pair, thereby improving the sealing performance and reliability of the valve Sex.



    Characteristics Of Cryogenic Glove Valve

    1. The structure of the high-pressure final valve is simpler than the gate valve, and it is more convenient to manufacture and maintain.

    2. The sealing surface is not easy to be worn and scratched, and the sealing is good. There is no relative sliding between the valve flap and the sealing surface of the valve body when opening and closing, so that the wear and scratch are not serious, the sealing performance is good, and the installation is long.

    3. When opening and closing, the valve flap travel is small, so the final valve height is smaller than the gate valve, but the structure length is longer than the gate valve.

    Three, high-pressure final valve termination valve options:

    1. The final valve is suitable for small-diameter pipelines where the flow rate needs to be adjusted, when the pressure and accuracy requirements are not high, or the unidirectional flow pipe section that intercepts the water flow is often closed.

    2. Due to the resistance deflection of the shut-off valve, it is relatively suitable for straight lines with less strict convection resistance requirements.

    3. Appropriate viscosity reduction or medium containing particles that are easy to precipitate.

    13. Flexible switch, easy to operate, long life

    Fourth, the design features of the high-pressure final valve:

    1. The structure of the high-pressure final valve is simpler than the gate valve, and it is more convenient to manufacture and maintain

    2. The fluid resistance is large, because the medium channel in the valve body is tortuous, the fluid resistance is large, and the power consumption is large.

    3. The sealing surface is not easy to be worn and scratched, and the sealing is good. There is no relative sliding between the valve flap and the sealing surface of the valve body when opening and closing, so the wear and friction are not serious, the sealing performance is good, and the replacement is long.

    4. The valve flap is often eroded when the dedicated high-pressure final valve is fully opened.

    5. When opening and closing, the flap travel is small, and the height of the stop valve is always smaller than the gate valve, but the structural length is longer than the gate valve.

    6. The opening and closing coils are large, the opening and closing are laborious, and the opening and closing time is aligned.

    Our company continuously absorbs advanced production technology at home and abroad, so that products from design and development, performance testing, material selection, processing to assembly, are constantly innovating and improving to ensure that products can meet customer needs in terms of appearance, performance, economy and so on. Harmony and quality is our company's business mode. It is our service method to consider customers from the smallest details. In today's fiercely competitive market, we always adhere to "developing with quality, seeking efficiency with management, and seeking market with reputation" Operating strength, and strive to build our brand. We wholeheartedly welcome new and old customers to come to consult!



    Handwheel Operated 316 304 Stainless Steel Cryogenic Globe Valve 0



    FAQ

    Q1. What is your MOQ?
    Our MOQ is one piece.
    Q2. Do you provide sample for customer?
    Yes, sample is available.
    Q3. Do you do OEM service?
    Yes, we accept OEM order and can make customer's LOGO on the products.
    Q4. Do you support customization?
    Yes, customization is acceptable.
    Q5. Can you advise suitable cryogenic valves to me?
    We have more than 15 years experience in cryogenic field. We are professional in valve selection and will advise you suitable valves with detailed parameters and prices.
    Q6. How long is your delivery time?
    It usually takes 5-30 days depending on the quantity of the order and the stock.
