Place of Origin:
China
Brand Name:
CNLN
Certification:
CE/ISO
Model Number:
Globe valve
| Construction is as follows | |

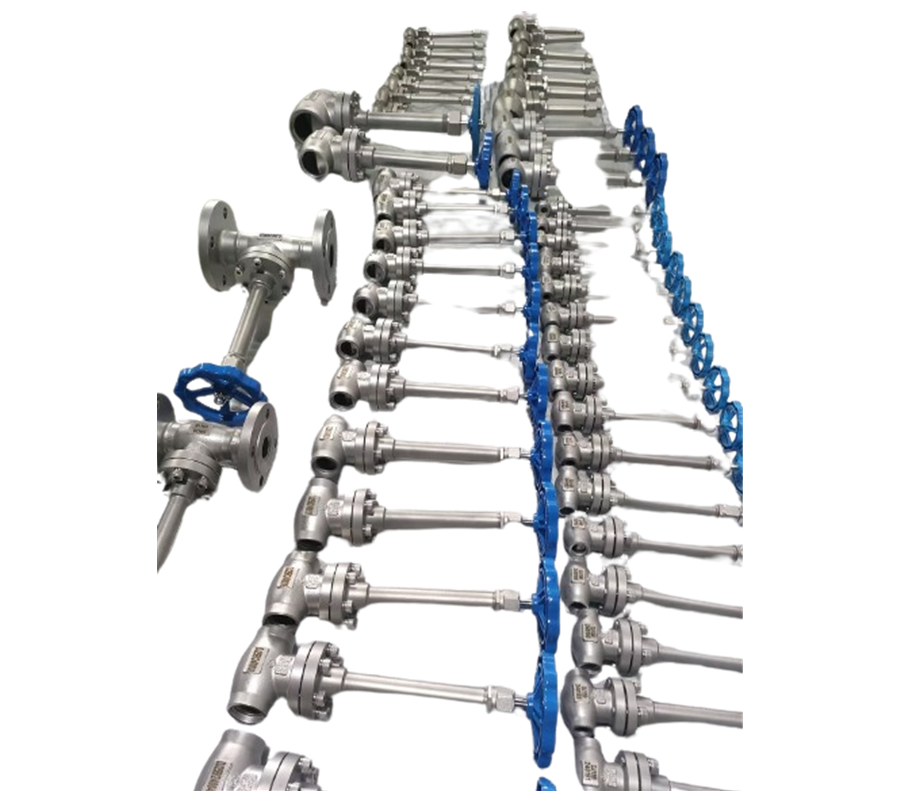

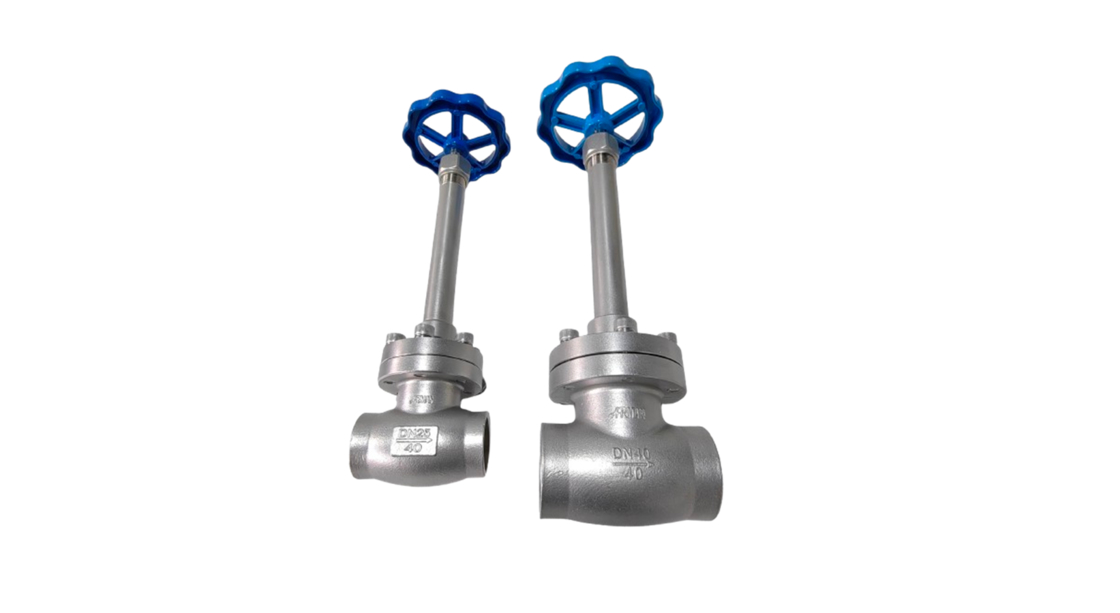

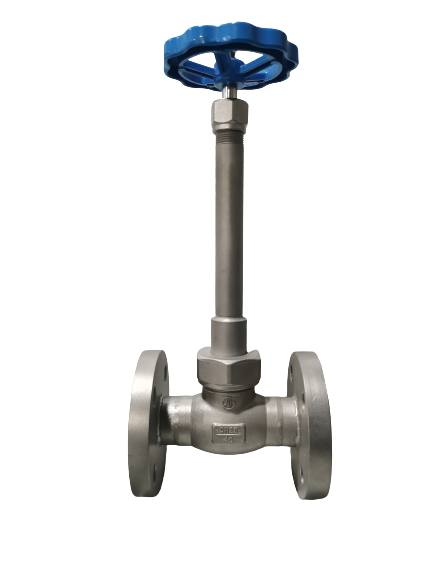

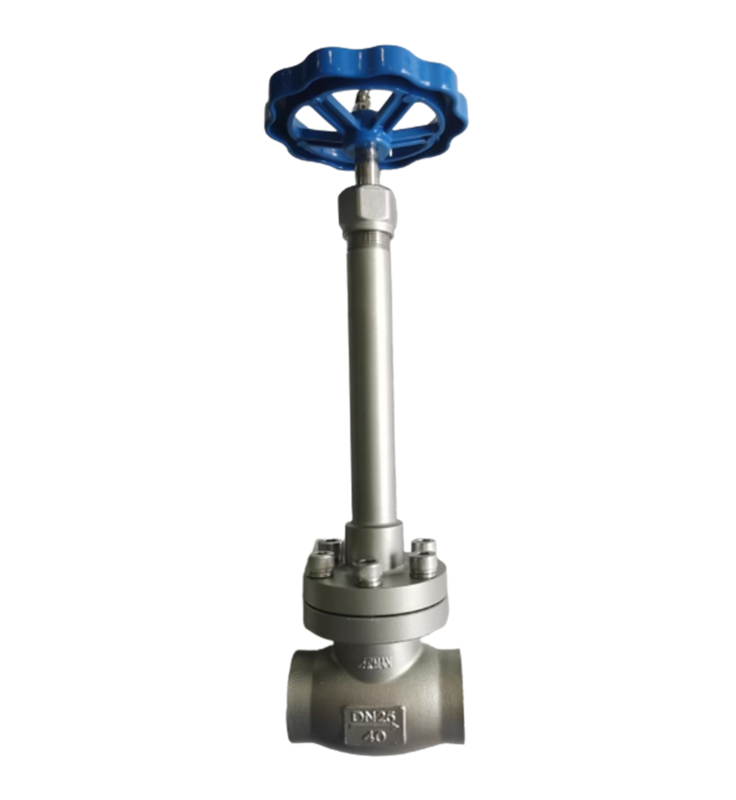

| Name | Cryogenic Globe Valve |
| Size | 1/2"~10"; DN15~DN250 |
| Normal pressure | Class 150/300/600/900; PN16/PN25/PN40/PN64 |
| Design standard | BS 6364,MESC SPE 77/200,BS1873,ASME B16.34; DIN3356, EN13709 |
| Marked | MSS SP-25 |
| End flange | ANSI B 16.5,ASME B16.47; EN1092,DIN2543~DIN2547,AS2129 |
| Face to Face | ANSI B 16.10,API 6D; DIN3202,EN558-1,EN12982,ISO 5752 |
| Test standard | BS 6364,MESC SPE 77/200,API598,API 6D; DIN3230, EN12266,ISO 5208 |
| Suitable temperature | -196~+80°C |
| Medium | LNG, LO2,LN2, Lar |
| Acidic environment | NACE MR0175 |
| Operation | Handwheel Operated,Gear Operated, Electrical Actuated |
| Structure | |
| - Regular Port | |
| - Bolted Bonnet / Pressure Sealed Bonnet / Welded BonnetS | |
| - Outside Screw and Yoke(OS&Y) | |
| - Clockwise closing direction | |
| - Solid Disc(Plug, Ball/Spherical, Throttling) | |
| - Renewable Seat or integral Seat | |
| - Backseat | |
| - Design:BS 6364,MESC SPE 77/200,BS1873, DIN3356, EN13709,JIS,ANSI,GB | |
| - Butt Weld Ends to ASME B16.25; DIN 3239,EN12627 | |
| - Flanged Ends to ASME B16.5;DIN2543~DIN2547;EN1092 | |
| - Cast or Forged Carbon Steel, Stainless Steel, Duplex Steel | |
Q. Are there any special requirements for OEM purchases?
A. Yes. requires proof of trademark registration in order to print or emboss your trademark onto the product or packaging.
Q. Do products come with a warranty ?
A. Yes. That's why we offer 1-year product life guarantee, and a generous1 year warranty on all purchases that begins with the bill of loading.
Q. How can I get some samples?
A. Usually we don’t offer free sample and express fee are required, the sample cost can be deducted from your first large order.
Q. What's the MOQ of your products?
A. Our MOQ is one (1) piece/set.
Q. Are you a manufacturer with your own factory?
A. Yes, we are the manufacturer for more than 8 years
