Place of Origin:
China
Brand Name:
CD-CNLN
Certification:
CE/ISO/original certificate

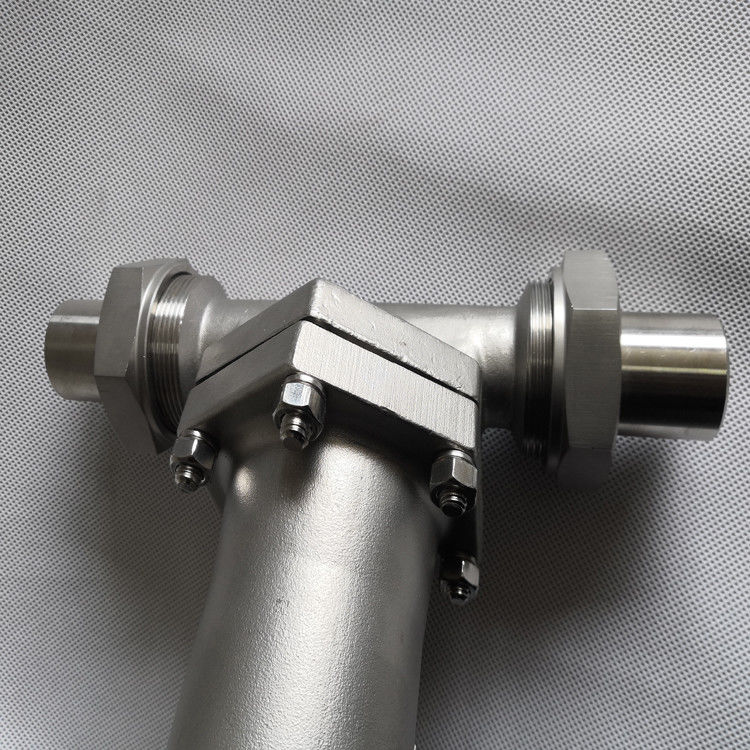

Industrial Cryogenic Pressure Reducing Valve Throme Plated Surface SS304
Cryogenic pressure reducing valve from China
Name: Cryogenic Pressure Reducing Valve
Main technical parameters Nominal diameter: Customize
Nominal Pressure: Customize
Applicable medium: LO2, LN2, LAr, LNG
Applicable temperature: -196℃~+80℃
Connecting format:Intercalation welding
Material:
Body: ZG0Cr8Ni9
Bonnet:ZG0Cr8Ni9
Stem: 0Cr18Ni9
Packing: PTFE
Disc face ring:PCTFE
Porudct show
| Product Code | Product Model | H | L | D | D1 | Post-valve Outlet Pressure (MPa) | Sealing Pressure(MPa) |
| C281DE10 | CDY22F-25PJ | 179 | 157 | 20 | 14 | 0.22~0.88 | 0.18~0.72 |
| C282DE10 | CDY22F-25PJ | 179 | 157 | 20 | 14 | 0.88~1.76 | 0.72~1.44 |
| C281DE15 | CDY22F-25PJ | 228 | 195 | 24 | 18 | 0.22~0.88 | 0.18~0.72 |
| C282DE15 | CDY22F-25PJ | 228 | 195 | 24 | 18 | 0.88~1.76 | 0.72~1.44 |
| C281DE20 | CDY22F-25PJ | 245 | 201 | 32 | 26 | 0.22~0.88 | 0.18~0.72 |
| C282DE20 | CDY22F-25PJ | 245 | 201 | 32 | 26 | 0.88~1.76 | 0.72~1.44 |
| C281DE25 | CDY22F-25PJ | 249 | 215 | 45 | 26 | 0.22~0.88 | 0.18~0.72 |
| C282DE25 | CDY22F-25PJ | 249 | 215 | 45 | 26 | 0.88~1.76 | 0.72~1.44 |
| C281DE32 | CDY22F-25PJ | 322 | 267 | 45 | 39 | 0.22~0.88 | 0.18~0.72 |
| C282DE32 | CDY22F-25PJ | 322 | 267 | 45 | 39 | 0.88~1.76 | 0.72~1.44 |
| C281DE40 | CDY22F-25PJ | 322 | 267 | 45 | 39 | 0.22~0.88 | 0.18~0.72 |
| C282DE40 | CDY22F-25PJ | 322 | 267 | 45 | 39 | 0.88~1.76 | 0.72~1.44 |
| C281DE50 | CDY22F-25PJ | 341 | 325 | 60 | 50 | 0.22~0.88 | 0.18~0.72 |
| C282DE50 | CDY22F-25PJ | 341 | 325 | 60 | 50 | 0.88~1.76 | 0.72~1.44 |
Q: Does your company have the export license?
Yes, we have more than 2years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
Q: How will make the shippment ?
A: By Sea Shippment ,By Air ,Express Service
Q: Are you trading company or manufacturer ?
A: We are Manufacture.
