Place of Origin:
China
Brand Name:
CD-CNLN
Certification:
CE/ISO/Original certificate
High Pressure Spring Loaded Check Valve Cryogenic 304 Stainless Steel
Product Description
Low temperature check valve refers to a valve that can automatically open and close the valve to communicate with the internal fluid to prevent the backflow of the medium. It is also known as check valve, check valve, reverse flow valve and back pressure valve. Check valves are automatic valves. Its main function is to prevent the backflow of the medium, prevent the reverse rotation of the pump and the drive motor, and release the medium in the container. A check valve or passage used to supplement pressure in an auxiliary system that may be higher than the system pressure.
| Valve Type: | Check Valve |
| Connection Type: | Welding |
| Nominal Diameter: | Customize |
| Nominal Pressure: | Customize |
| Material: | SS 316/304 |
| Valve Disc: | 06Cr19Ni10 |
| Stuffing: | PTFE |
| Suitable Medium: | LO2,LN2,LAr,LNG,LCO2,etc |
| Suitable Temparature: | (-196℃~+80℃) |
| Design and Manufacture: | Conform to GB/T24925-2010 |
| Testing: | Conform to GB/T13927-2008 |
| Valve Lifetime: | Specified according to usage frequency and installation location |
| Lead Time: | Customized valves are usually 30~45 days; Stock valves are usually within 5 days. |

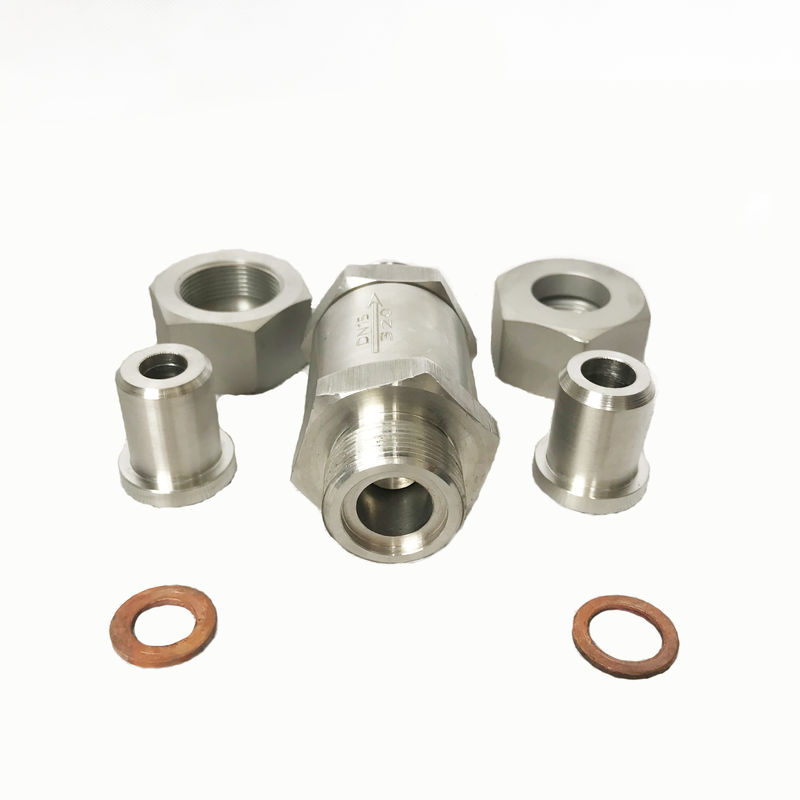

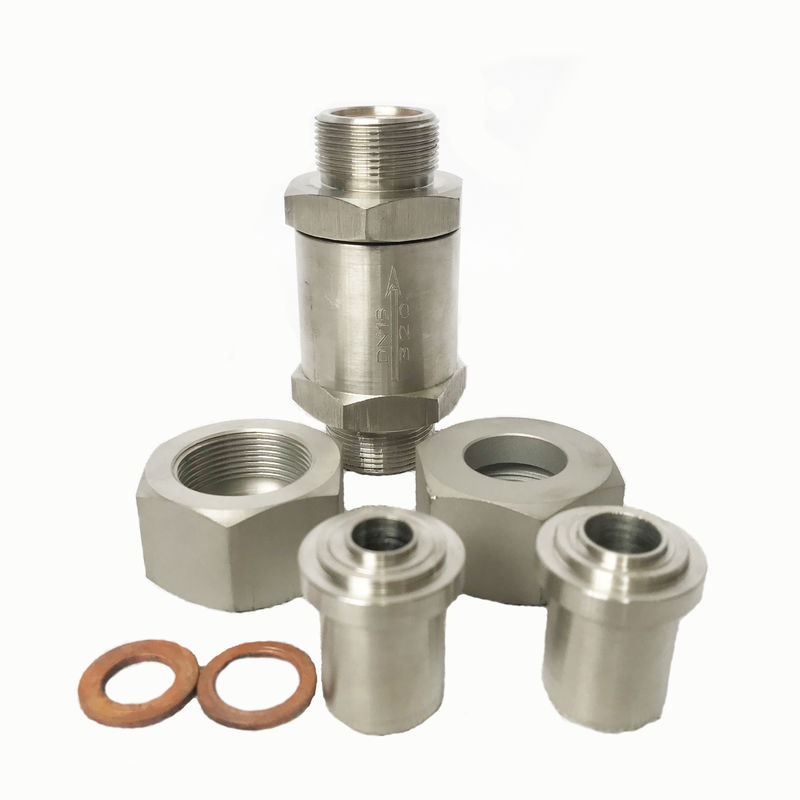

Valves Display
|
|
|
|
|
|
Valve Specification
|
Product Code |
DN |
H |
L |
B |
D0 |
D1 |
D2 |
D3 |
|
C325DH10 |
10 |
90 |
114 |
10 |
13 |
18 |
42 |
85 |
|
C325DH15 |
15 |
90 |
114 |
10 |
17 |
22 |
42 |
85 |
|
C325DH20 |
20 |
118 |
130 |
10 |
21 |
26 |
66 |
98 |
|
C325DH25 |
25 |
118 |
130 |
10 |
28 |
33 |
66 |
98 |
Usage
FAQ
Q1. What is your payment term?
A: T / T or L / C, if you want any other way, please contact us.
Q2: what is your main market?
A: Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, North America, South America, and so on.
Q3: If products have some quality problem, how would you deal with?
A: We will be responsible for all the quality problems.
Q4: What can I get from cooperating with Liangchuan?
A: 1. Unique valves, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
