SS304/316 Steam Pressure Reducing Valve Low Temperature Step Down Regulator

SS304/316 Steam Pressure Reducing Valve Low Temperature Step Down Regulator

ss pressure reducing valve

adjustable pressure reducing valve

SS304 Steam Pressure Reducing Valve

Place of Origin:

China

Brand Name:

CD-CNLN

Certification:

CE/ISO

Contact Us
Request A Quote
Product Details
Name:
Low-temperature Step-down Regulator From China
Material:
Customize
Application:
Cryogenic Field
Temperature Demand:
Customize Temperature
Nominal Pressure:
Customize
Medium Flow:
Customize Way
Model:
Customize Model
Logo:
Customize Logo
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
1-100
Packaging Details
Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve;
Delivery Time
2-3days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs one day
Product Description

SS304/SS316 Steam Pressure Reducing Valve Low Temperature Step Down Regulator



Description Of Steam Pressure Reducing Valve

This type is special low-temperature step-down regulator is mainly used for low temperature storage tank, tank car and tank car step-down system, widely used in LNG, ethylene and other low temperature liquid medium, with reliable sealing, action quick, the characteristics of the pressure is stable and reliable, and anti-static.
Applicable for temperature: Customize;
Extended Bonnet
Pressure release holes
Materials subzero treatment and test

Sizes: Customize
Pressure Rating: Customize
Material of valve body: F304, F304L, F316, F316L, etc.
Operated by: Handwheel



Packaging & Shipping

.jpg



Data Of Steam Pressure Reducing Valve
Name: Steam Pressure Reducing Valve
Main technical parameters Nominal diameter: Customize
Nominal Pressure: Customize
Applicable medium: O2, N2, Ar, LNG
Applicable temperature: Customize
Connecting format:
Material:
Body: SS304/SS316
Bonnet: 06Cr19NI10
Stem: 06Cr19NI10
Packing: PTFE
Disc face ring:PCTFE

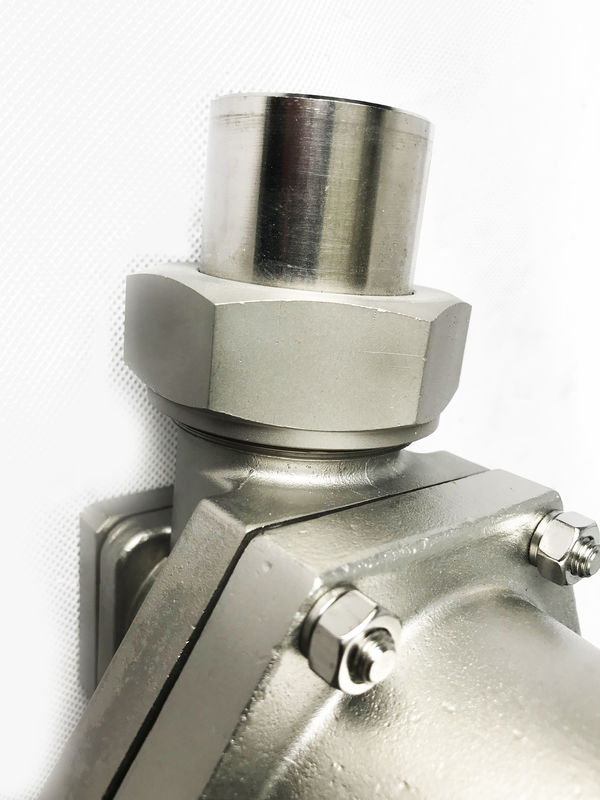

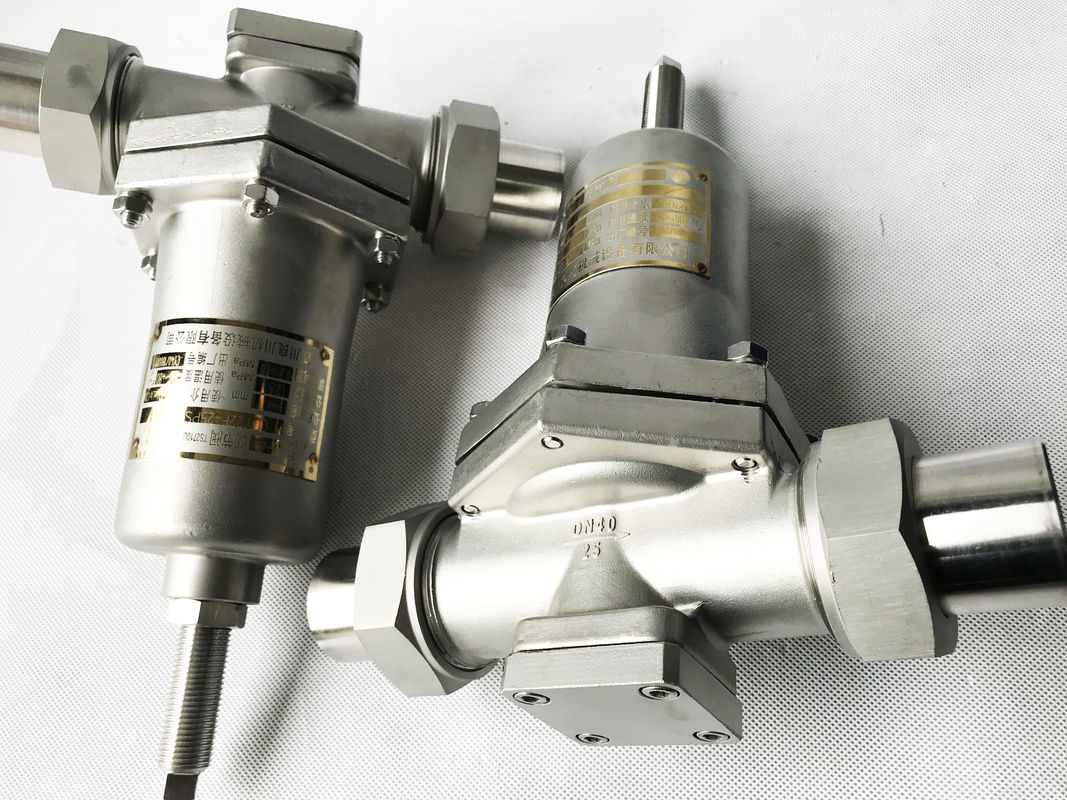

Details Of Steam Pressure Reducing Valve

IMG_6693









Size
Product Code Product Model H L D D1 Post-valve Outlet Pressure (MPa)
C271DE15 CDY22F-25PS 197 195 24 18 0.2~0.8
C272DE15 CDY22F-25PS 197 195 24 18 0.8~1.6
C271DE20 CDY22F-25PS 245 201 32 26 0.2~0.8
C272DE20 CDY22F-25PS 245 201 32 26 0.8~1.6
C271DE25 CDY22F-25PS 249 215 32 26 0.2~0.8
C272DE25 CDY22F-25PS 249 215 32 26 0.8~1.6
C271DE32 CDY22F-25PS 314 267 45 39 0.2~0.8
C272DE32 CDY22F-25PS 314 267 45 39 0.8~1.6
C271DE40 CDY22F-25PS 321 267 45 39 0.2~0.8
C272DE40 CDY22F-25PS 321 267 45 39 0.8~1.6
C271DE50 CDY22F-25PS 341 325 60 50 0.2~0.8
C272DE50 CDY22F-25PS 341 325 60 50 0.8~1.6



IMG_6697

Packaging & Shipping




How to order?


Please kindly inform us the following specification for our reference.
1. Model
2. Size of inlet and outlet
3. Quantity of each size



FAQ

Q1: What is your product name?
A:CF8 Steam Pressure Reducing Valve Low Temperature Step Down Regulator.



Q2:Where is your factory located?
A:Our factory is located in SICHUAN.



Q3: Can you provide sample?
A: Yes, we can provide you sample.
