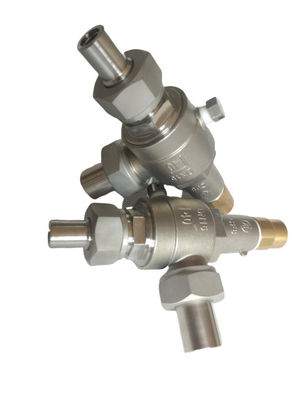

2 Inch Cryogenic Relief Valve Screw Thread Connection SS304 For LNG Tank

2 Inch Cryogenic Relief Valve Screw Thread Connection SS304 For LNG Tank

safety release valve

asme safety valve

Screw Thread Connection Cryogenic Relief Valve

Place of Origin:

CHINA

Brand Name:

CNLN

Certification:

CE/ISO

Model Number:

safety valve

Contact Us
Request A Quote
Product Details
Media:
LO2,LN2,LAr,LNG,etc
Power:
Manual
Material:
Stainless Steel
Application:
Industry
Standard Or Nonstandard:
Standard
Valve Color:
Customer Request
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
USD120 PER PC
Packaging Details
Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for valves are available
Delivery Time
5-8 work days
Payment Terms
T/T
Supply Ability
3000pcs per month
Product Description

2 Inch Cryogenic Relief Valve Screw Thread Connection SS304 For LNG Tank



OEM Available Screw Thread Connection SS304/316 2 Inch Cyogenic Safety for LNG Tank



Product Description

The overall material of the safety valve is made of high-quality stainless steel. After cryogenic processing, it is processed and assembled. It adopts a fully-closed bonnet and bonnet structure. When the safety valve is opened and discharged, the medium will not leak to the outside, and all are discharged through the drain pipe It can prevent dust and other impurities from entering the valve. It is suitable for low-temperature conditions of temperature -196 ~ 200 ° C as an overpressure protection device. The low temperature safety valve is mainly used in low temperature liquid medium systems such as liquid oxygen (liquid nitrogen, liquid argon), and has the characteristics of free start, reliable sealing and stable take-off pressure.




Main technical parameters:

Nominal diameter: DN10-250mm
Nominal Pressure: PN4.0MPa
Applicable medium: O2, N2, Ar, LNG
Applicable temperature:



Connecting format:
Material: Body: CF8
Bonnet: 06Cr19NI10  Stem: 06Cr19NI10
Packing: PTFE      Disc face ring:PCTFE



Customer Notice:


1. If customers have special requirements for products, they must provide the following instructions in the order contract:
a. Structure length
b. Connection Type;
c. Nominal diameter
d. Product use medium and temperature and pressure range;
e. Testing, inspection standards and other requirements.



2. The factory can configure various driving devices according to customer specific requirements.


3. If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract on the condition that the supply and demand sides understand and agree.


4. For futures and ordering customers, please call the letter to tell the valve model, specifications, quantity, delivery time and place in detail. And advance payment of 30% of the total contract amount, the supplier is ready for production.








Valve Type:safety valve

Connection Type: screw/thread

Nominal Diameter:DN15~25mm

Nominal Pressure:PN4.0MPa

Set Pressure:0.92MPa,1.76 MPa,2.42 MPa

Material: Valve Body:CF8;
Valve Disc:06Cr19Ni10;

Valve Seat:05Cr19Ni10;

Seal material:PTFE;

Suitable Medium:O2,N2,Ar,LNG,LCO2,etc



Design and Manufacture:Conform to GB/T24925-2010

Testing:Conform to GB/T13927-2008

Valve Lifetime:Specified according to usage frequency

and installation location

Lead Time:Customized valves are usually 30~45 days; Stock valves are usually within 5 days.







Valve Specificatiosafety-valve-2.png

Product Code

Size

H

H1

L

M1

M2

D0

D1

D2

C158DJ15

179

62

47

M45×2

M36×2

36

15

32

C158DJ25

159

51

46

M30×1.5

M30×1.5

22

12

26








FAQ



Q. Are there any special requirements for OEM purchases?
A. Yes. Liangchuan requires proof of trademark registration in order to print or emboss your trademark onto the product or packaging.

Q. Do Liangchuan products come with a warranty ?
A. Yes. That's why we offer 3-year product life guarantee, and a generous1 year warranty on all purchases that begins with the bill of loading.

Q. How can I get some samples?

A. Usually we don’t offer free sample and express fee are required, the sample cost can be deducted from your first large order.

Q. What's the MOQ of your products?

A. Our MOQ is one (1) piece/set.

Q. Are you a manufacturer with your own factory?

A. Yes, we are the manufacturer for more than 8 years
