|Place of Origin:||CHINA-CHENGDU|
|Minimum Order Quantity:||1 pcs|
|Price:||USD200 PER PC|
|Packaging Details:||Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for valves are available|
|Delivery Time:||5-8 work days|
|Supply Ability:||3000pcs per month|
|Valve Color:||Customer Request||Port Size:||1/4"-2"|
industrial ball valve,
three way ball valve,
OEM Cryogenic SS Ball Valve

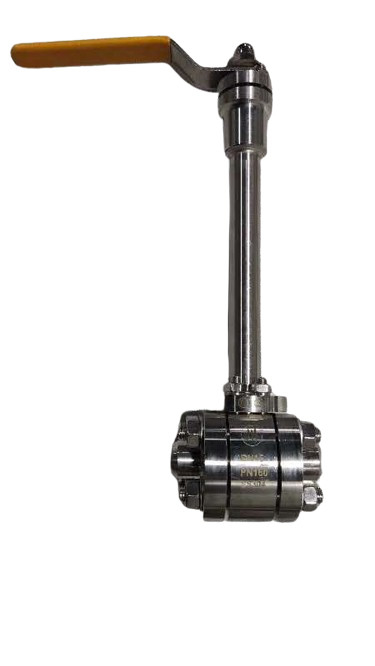

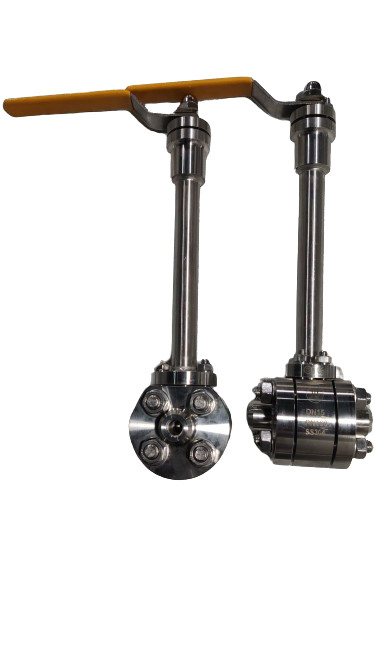

OEM DN25 Long Shaft Valve Cryogenic SS Ball Valve CE / ISO9001 Approved
OEM SS304 DN25 Cryogenic Customize Logo New Type Ball Valve
1 . The structure of reducing pressure holes in the valve core is adopted.
2 . The stem height is the optimal length obtained through calculation and testing.
3 . The gasket is made of ceramic filling material with stable sealing properties.
4 . In order to reduce the heat loss of the valve body, especially to ensure the use of the valve at ultra-low temperature, the valve body is specially designed to be light in weight and small in size.
5 . The long-shaft valve has a valve through which low-temperature fluid flows. The long stem is used to avoid the effect of external heat to keep the gland at normal temperature to prevent the performance of the cap seal from decreasing.
Main technical parameters Nominal diameter: DN10-250mm
Nominal Pressure: PN4.0MPa
Applicable medium: O2, N2, Ar, LNG
Applicable temperature: -80℃~+80℃
Material: Body: CF8 Bonnet: 06Cr19NI10
Stem: 06Cr19NI10 Packing: PTFE Disc face ring:PCTFE
1. If customers have special requirements for products, they must provide the following instructions in the order contract:
a. Structure length
b. Connection Type;
c. Nominal diameter
d. Product use medium and temperature and pressure range;
e. Testing, inspection standards and other requirements.
2. The factory can configure various driving devices according to customer specific requirements.
3. If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract on the condition that the supply and demand sides understand and agree.
4. For futures and ordering customers, please call the letter to tell the valve model, specifications, quantity, delivery time and place in detail. And advance payment of 30% of the total contract amount, the supplier is ready for production.
Si Chuan Liangchuan Mechanical Equipment Co.,Ltd is a high-tech company specializing in the production of many kinds of valves for more than 12 years, especially cryogenic valves. The main products are cryogenic valves, gate valves, globe valves, ball valves, butterfly valves, check valves, safety valves with different connection types,etc. We have many national technology patents. And we also established and improved the special equipment manufacturing management system and ISO 9001 international quality system and passed the certifications. In 2015, we have passed the certification of High Technology Enterprise. And CE(ECM) in 2018, EAC in 2022. Liangchuan has established a strict and complete test organization, in order to ensure that the products’ qualities are in line with relevant national standards, industry standards and your standards.
Making technology products and building green home
Professional, Focused, Honest, Pragmatic
People-oriented Pursuit of excellence
Q. Are there any special requirements for OEM purchases?
A. Yes. Liangchuan requires proof of trademark registration in order to print or emboss your trademark onto the product or packaging.
Q. Do Liangchuan products come with a warranty ?
A. Yes. That's why we offer 3-year product life guarantee, and a generous1 year warranty on all purchases that begins with the bill of loading.
Q . Do you support customization?
A . Yes, customization is acceptable.
Q . Can you advise suitable cryogenic valves to me?
A . We have more than 12 years experience in cryogenic field. We are professional in valve selection and will advise you suitable valves with detailed parameters and prices.
Q . How long is your delivery time?
A . It usually takes 5-30 days depending on the quantity of the order and the stock.
