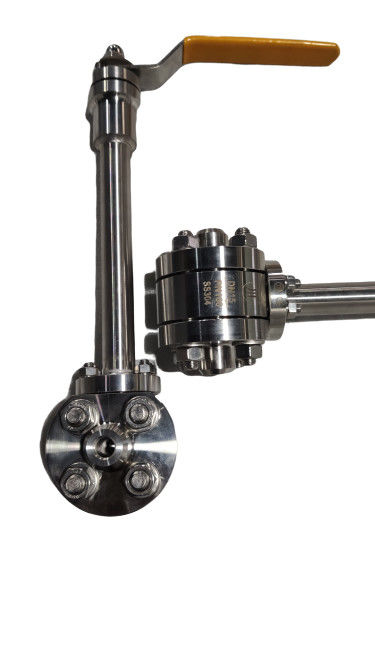

OEM DN25 Long Shaft Valve Cryogenic SS Ball Valve CE / ISO9001 Approved

OEM DN25 Long Shaft Valve Cryogenic SS Ball Valve CE / ISO9001 Approved

industrial ball valve

three way ball valve

OEM Cryogenic SS Ball Valve

Place of Origin:

CHINA-CHENGDU

Brand Name:

CNLN

Certification:

CE/ISO/EAC

Model Number:

CJ61F

Contact Us
Request A Quote
Product Details
Media:
Gas
Power:
Manual
Material:
Stainless Steel
Application:
Industry
Valve Color:
Customer Request
Port Size:
1/4"-2"
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
USD200 PER PC
Packaging Details
Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for valves are available
Delivery Time
5-8 work days
Payment Terms
T/T
Supply Ability
3000pcs per month
Product Description

OEM DN25 Long Shaft Valve Cryogenic SS Ball Valve CE / ISO9001 Approved



OEM SS304 DN25 Cryogenic Customize Logo New Type Ball Valve



Product Description

【Features】:


1 . The structure of reducing pressure holes in the valve core is adopted.


2 . The stem height is the optimal length obtained through calculation and testing.


3 . The gasket is made of ceramic filling material with stable sealing properties.


4 . In order to reduce the heat loss of the valve body, especially to ensure the use of the valve at ultra-low temperature, the valve body is specially designed to be light in weight and small in size.


5 . The long-shaft valve has a valve through which low-temperature fluid flows. The long stem is used to avoid the effect of external heat to keep the gland at normal temperature to prevent the performance of the cap seal from decreasing.



Main technical parameters Nominal diameter: DN10-250mm


Nominal Pressure: PN4.0MPa


Applicable medium: O2, N2, Ar, LNG


Applicable temperature: -80℃~+80℃


Connecting format:


Material: Body: CF8      Bonnet: 06Cr19NI10


Stem: 06Cr19NI10      Packing: PTFE      Disc face ring:PCTFE






Customer Notice:


1. If customers have special requirements for products, they must provide the following instructions in the order contract:
a. Structure length
b. Connection Type;
c. Nominal diameter
d. Product use medium and temperature and pressure range;
e. Testing, inspection standards and other requirements.



2. The factory can configure various driving devices according to customer specific requirements.


3. If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract on the condition that the supply and demand sides understand and agree.


4. For futures and ordering customers, please call the letter to tell the valve model, specifications, quantity, delivery time and place in detail. And advance payment of 30% of the total contract amount, the supplier is ready for production.

Factory Information

Si Chuan Liangchuan Mechanical Equipment Co.,Ltd is a high-tech company specializing in the production of many kinds of valves for more than 12 years, especially cryogenic valves. The main products are cryogenic valves, gate valves, globe valves, ball valves, butterfly valves, check valves, safety valves with different connection types,etc. We have many national technology patents. And we also established and improved the special equipment manufacturing management system and ISO 9001 international quality system and passed the certifications. In 2015, we have passed the certification of High Technology Enterprise. And CE(ECM) in 2018, EAC in 2022. Liangchuan has established a strict and complete test organization, in order to ensure that the products’ qualities are in line with relevant national standards, industry standards and your standards.

Enterprise mission:

Making technology products and building green home

Business philosophy:

Professional, Focused, Honest, Pragmatic

Corporate purposes:

People-oriented Pursuit of excellence

OEM DN25 Long Shaft Valve Cryogenic SS Ball Valve CE / ISO9001 Approved 0OEM DN25 Long Shaft Valve Cryogenic SS Ball Valve CE / ISO9001 Approved 1











FAQ



Q. Are there any special requirements for OEM purchases?
A. Yes. Liangchuan requires proof of trademark registration in order to print or emboss your trademark onto the product or packaging.

Q. Do Liangchuan products come with a warranty ?
A. Yes. That's why we offer 3-year product life guarantee, and a generous1 year warranty on all purchases that begins with the bill of loading.

Q . Do you support customization?


A . Yes, customization is acceptable.


Q . Can you advise suitable cryogenic valves to me?


A . We have more than 12 years experience in cryogenic field. We are professional in valve selection and will advise you suitable valves with detailed parameters and prices.


Q . How long is your delivery time?


A . It usually takes 5-30 days depending on the quantity of the order and the stock.OEM DN25 Long Shaft Valve Cryogenic SS Ball Valve CE / ISO9001 Approved 2OEM DN25 Long Shaft Valve Cryogenic SS Ball Valve CE / ISO9001 Approved 3
