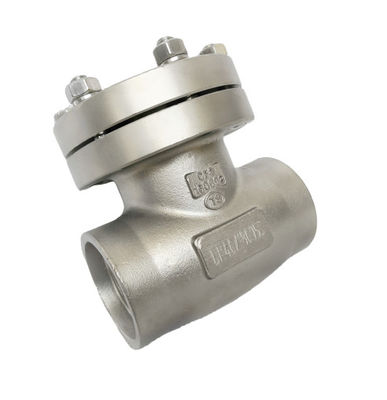

OEM DN15 PN40 Cryogenic Check Valve Stainless Steel Disc Shaped For LNG

OEM DN15 PN40 Cryogenic Check Valve Stainless Steel Disc Shaped For LNG

  • OEM DN15 PN40 Cryogenic Check Valve Stainless Steel Disc Shaped For LNG
OEM DN15 PN40 Cryogenic Check Valve Stainless Steel Disc Shaped For LNG
Product Details:
Place of Origin: CHINA
Brand Name: CNLN
Certification: CE/ISO
Model Number: CDH61F
Contact Now
Detailed Product Description
Material: Stainless Steel Power: Manual
Pressure: PN40 Structure: Check
Port Size: DN15
High Light:

industrial check valve

,

stainless steel check valve

,

PN40 Cryogenic Check Valve

OEM DN15 PN40 Cryogenic Check Valve Stainless Steel Disc Shaped For LNG



OEM SS304 DN15 PN40 Cryogenic Check Valve for LNG Logo Customization Available

Product Description



1. The valve flap of the low temperature check valve is disc-shaped, and rotates around the rotation axis of the valve seat channel. Because the channel inside the valve is streamlined, the flow resistance is smaller than that of the butterfly check valve, which is suitable for low flow rates and irregular flow. Changing large-caliber occasions, but it is not suitable for pulsating flow, and its sealing performance is not as good as that of lifting type. The butterfly check valve is divided into three types: single, double and multiple. The three types are mainly divided by the valve diameter. The purpose is to prevent the hydraulic shock when the medium stops flowing or flows backward.



2. The low temperature check valve flap is a check valve that slides along the vertical centerline of the valve body. The internally threaded check valve can only be installed on horizontal pipelines. On high pressure small diameter check valves, the valve disc can be a ball. The body shape of butterfly check valve is the same as that of globe valve (can be used with globe valve), so its fluid resistance coefficient is large. Its structure is similar to a globe valve, with the same body and disc as the globe valve. The upper part of the valve disc and the lower part of the valve cover are processed with a guide sleeve. The valve disc guide can be freely raised and lowered in the valve guide. When the medium flows, the valve disc is opened by the thrust of the medium. Falling down on the valve seat, it plays a role in preventing the medium from flowing backward. The direction of the medium inlet and outlet channels of the straight-through butterfly check valve is perpendicular to the direction of the valve seat channel; the vertical lift check valve has the same direction of medium inlet and outlet channels as the valve seat channel, and its flow resistance is smaller than that of the straight type.



3. Low temperature check valve: a check valve whose valve disc rotates around a pin in the valve seat. The disc check valve has a simple structure and can only be installed on horizontal pipelines, and has good sealing performance.



4. Low-temperature check valve: a valve whose valve disc slides along the center line of the valve body. Pipeline check valve is a new type of valve. Its small size, light weight, and good processing technology are one of the development directions of check valves. However, the coefficient of fluid resistance is slightly larger than that of the swing check valve.



5, compact check valve: This valve is used as a boiler feed water and steam shutoff valve, it has the integrated function of lifting check valve and globe valve or angle valve.

In addition, there are some check valves that are not suitable for the pump outlet installation, such as foot valve, spring type, Y type and other check valves.

The valve is used as a device for preventing the medium from flowing backward on industrial pipelines.





Notes When Use


1 . It should ensure that the pipe is blown clean before installation.



2 . When installing, make sure that the flow direction indicated by the arrow on the valve body should be consistent with the flow direction of the fluid.



3 . This valve has been degreased. Store and keep clean when installing.



4 . After the pipeline construction is completed, all the valves on the pipeline should be opened, and the residue in the pipeline should be thoroughly and thoroughly kept to ensure that the pipeline system is clean and free of debris.



5 . The installation system diagram with the oil-free requirements should be degreased.



6 . Slowly open and close during use.



7 . If the precision parts such as the valve disc, valve seat and valve stem are worn or damaged, it must be repaired and replaced in time.



8 . For parts such as gaskets and sealing materials, replace them with new ones each time.





Valves Display













Valve Specification


Product Code

DN

H

L

B

D0

D1

D2

C325DJ10

10

64

195

6

12

15

22

C325DJ15

15

64

195

6

15

19

26

C325DJ20

20

81

201

6

23

26

34

C325DJ25

25

81

201

6

26

33

39

C325DJ32

32

102

215

9

35

39

46

C325DJ40

40

102

215

10

42

46

52

C325DJ50

50

127

267

10

54

58

66

C325DJ65

65

150

267

10

68

77

85

C325DJ80

80

182

267

10

84

89

100





Valve Application






Valve Package




Factory Information

Si Chuan Liangchuan Mechanical Equipment Co.,Ltd is a high-tech company specializing in the production of many kinds of valves,especially cryogenic valves.The main products are cryogenic valves,gate valves,globe valves,ball valves,butterfly valves, check valves,safety valves,etc.Our company has many national technology patents.And our company has established and improved the special equipment manufacturing management system and ISO 9001 international quality system and passed the certifications.In 2015,we have passed the certification of High Technology Enterprise.Liangchuan has established a strict and complete test organization, in order to ensure that the product quality is in line with relevant national standards,industry standards and corporation standards.



Notes When Use

Q. Are there any special requirements for OEM purchases?
A. Yes. Liangchuan requires proof of trademark registration in order to print or emboss your trademark onto the product or packaging.



Q. Do Liangchuan products come with a warranty ?
A. Yes. That's why we offer 3-year product life guarantee, and a generous1 year warranty on all purchases that begins with the bill of loading.



Q . Do you support customization?

A . Yes, customization is acceptable.


Q . Can you advise suitable cryogenic valves to me?

A . We have more than 8 years experience in cryogenic field. We are professional in valve selection and will advise you suitable valves with detailed parameters and prices.


Q . How long is your delivery time?

A . It usually takes 5-30 days depending on the quantity of the order and the stock.
