Place of Origin:
Chengdu-China
Brand Name:
CD-CNLN
Certification:
CE/ISO/EAC
Model Number:
CDQJ661F

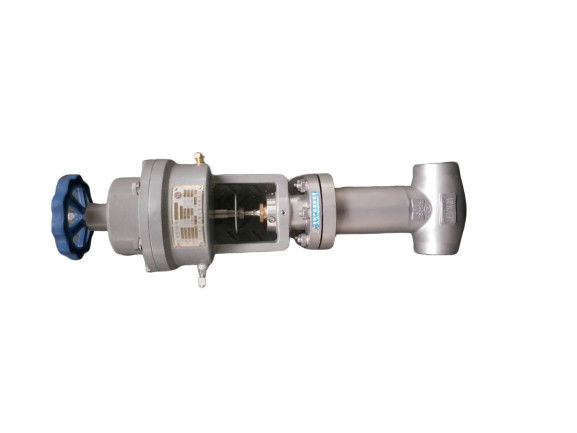

Low Temperature Insulation Emergency Shut Off Valve Welding Type DN10 - 40mm
Customer Notice:
1. If customers have special requirements for products, they must provide the following instructions in the order contract:
a. Structure length
b. Connection Type;
c. Nominal diameter
d. Product use medium and temperature and pressure range;
e. Testing, inspection standards and other requirements.
2. The factory can configure various driving devices according to customer specific requirements.
3. If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract on the condition that the supply and demand sides understand and agree.
4. For futures and ordering customers, please call the letter to tell the valve model, specifications, quantity, delivery time and place in detail. And advance payment of 30% of the total contract amount, the supplier is ready for production.
| Valve Type: | shut-off valve |
| Operated Type: | Handwheel |
| Connection Type: | Welding |
| Structure Type: | Through Way Type |
| Nominal Diameter: | DN10~40mm |
| Nominal Pressure: | PN4.0MPa |
| CL300 | |
| Material: | Valve Body:ZGOCr18Ni9 |
| Valve Bonnet:OCr18Ni9 | |
| Valve Stem:OCr18Ni9 | |
| Stuffing:PTFE | |
| Disc seal ring:PCTFE | |
| Suitable Medium: | LO2,LN2,LAr,LNG,LC2H4,etc |
| Suitable Temparature: | (-196℃~+80℃) |
| Design and Manufacture: | Conform to GB/T24925-2010 |
| Testing: | Conform to GB/T13927-2008 |
| Valve Lifetime: | Specified according to usage frequency and installation location |
| Lead Time: |
Customized valves are usually 30~45 days; Stock valves are usually within 5 days. |
Q. Are there any special requirements for OEM purchases?
A. Yes. Liangchuan requires proof of trademark registration in order to print or emboss your trademark onto the product or packaging.
Q. Do Liangchuan products come with a warranty ?
A. Yes. That's why we offer 3-year product life guarantee, and a generous1 year warranty on all purchases that begins with the bill of loading.
Q . Do you support customization?
A . Yes, customization is acceptable.
Q . Can you advise suitable cryogenic valves to me?
A . We have more than 8 years experience in cryogenic field. We are professional in valve selection and will advise you suitable valves with detailed parameters and prices.
Q . How long is your delivery time?
A . It usually takes 5-30 days depending on the quantity of the order and the stock.
