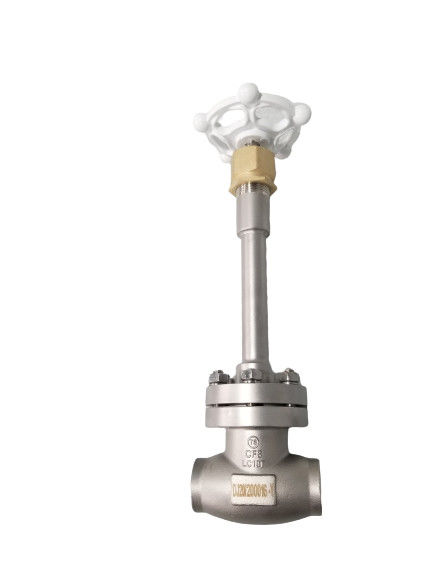

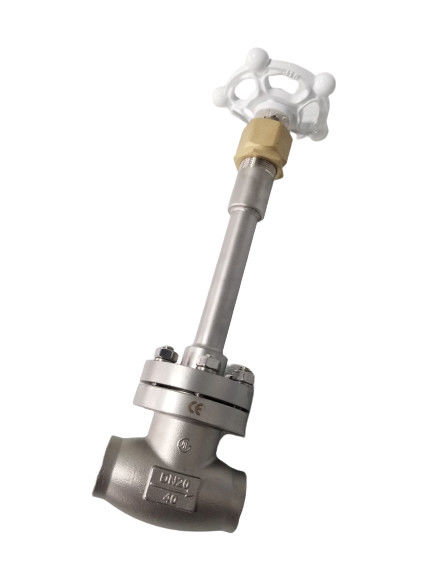

Stainless Steel 304 CF8 DN20 Low Temperature Globe Valve

Stainless Steel 304 CF8 DN20 Low Temperature Globe Valve

Stainless Steel 304 CF8 DN20 Low Temperature Globe Valve
Stainless Steel 304 CF8 DN20 Low Temperature Globe Valve
Stainless Steel 304 CF8 DN20 Low Temperature Globe Valve
Product Details:
Place of Origin: China
Brand Name: CNLN
Certification: CE/ISO
Model Number: DJ61F-40P
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD100-USD500/PC
Packaging Details: Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve;
Delivery Time: 2-3days
Payment Terms: T/T
Supply Ability: 3000pcs per month
Contact Now
Detailed Product Description
Produce Name: Cryogenic Globe Valve Material: CF8, SS304
Medium: LNG, LO2, Ln2, LAR, Etc Temperature Of Media: -196℃~+80℃
Logo: Customize Power: Manual
Connection: SW, BW, Flange
High Light:

DN20 Low Temperature Globe Valve

,

CF8 Low Temperature Globe Valve

,

Stainless Steel 304 Cryogenic Globe Valve

Stainless Steel 304 CF8 DN20 Low Temperature Globe Valve
Low Temperature Globe Valve Description

Model: CDJ61F

Nominal Diameter: NPS3/8"-10"

Nominal Pressure: 150-400LB

Applicable Medium: LNG, LO2, LN2, LAR, etc

Suitable Temperature: -196℃~+80℃



Valve
Name: Low Temperature Globe valve
Main technical parameters: Nominal diameter: DN10-100mm
Nominal Pressure: PN5.0MPa
Applicable medium: LO2, LN2, LAr, LNG
Applicable temperature: -196℃~+80℃
Connecting format:SW
Material: Body: CF8
Bonnet: 06Cr19NI10
Stem: 06Cr19NI10
Packing: PTFE
Disc face ring:PCTFE



Stainless Steel 304 CF8 DN20 Low Temperature Globe Valve 0

Stainless Steel 304 CF8 DN20 Low Temperature Globe Valve 1

After-sales Service For Low Temperature Globe Valve

Our factory makes the following commitments in terms of after-sales service if your company ordered valves in our company:



1. Our company implements warranty on product quality for twelve months;



2. Once the contract is signed, quality and quantity can be guaranteed and valves will be delivered on time;



3. We ensures that the valves provided meet the standards as long as it is mentioned in the contract;



4. For the technical consultation of the demand side, answers will be given at any time;



5. When delivering the valves, the factory will provide the following materials to the purchaser: delivery list, product certificate, product sample, product instruction manual, technical information;

After the user receives the goods, if there is a letter or phone call about quality problems, we guarantee to reply within 24 hours to solve the problem as soon as possible

Q&A

Q. Are there any special requirements for OEM purchases?
A. Yes. Liangchuan requires proof of trademark registration in order to print or emboss your trademark onto the product or packaging.

Q. Do Liangchuan products come with a warranty ?
A. Yes. That's why we offer 3-year product life guarantee, and a generous1 year warranty on all purchases that begins with the bill of loading.

Q. How can I get some samples?

A. Usually we don’t offer free sample and express fee are required, the sample cost can be deducted from your first large order.

Q. What's the MOQ of your products?

A. Our MOQ is one (1) piece/set.

Q. Are you a manufacturer with your own factory?

A. Yes, we are the manufacturer for more than 8 years

Little Tips For Low Temperature Globe Valve



The selection of materials for cryogenic valves should consider the following factors:


1) The minimum operating temperature of the valve;


2) The mechanical properties of metal materials required to maintain working conditions at low temperatures, especially impact toughness, relative elongation and structural stability;


3) In the case of low temperature and no oil lubrication, it has good wear resistance;


4) Has good corrosion resistance;


5) When using welding connection, the welding performance of the material should also be considered.
