SiChuan Liangchuan Mechanical Equipment Co.,Ltd

|
| Place of Origin: | China |
| Brand Name: | CNLN |
| Certification: | CE/ISO |
| Model Number: | DJ61F-40P |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD100-USD500/PC |
| Packaging Details: | Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve; |
| Delivery Time: | 2-3days |
| Payment Terms: | T/T |
| Supply Ability: | 3000pcs per month |
| Produce Name: | Cryogenic Globe Valve | Material: | CF8, SS304 |
|---|---|---|---|
| Medium: | LNG, LO2, Ln2, LAR, Etc | Temperature Of Media: | -196℃~+80℃ |
| Logo: | Customize | Power: | Manual |
| Connection: | SW, BW, Flange | ||
| High Light: | 304 Stainless Steel Globe Valve,DN40 Stainless Steel Globe Valve,CF8 Manual Globe Valve |
||

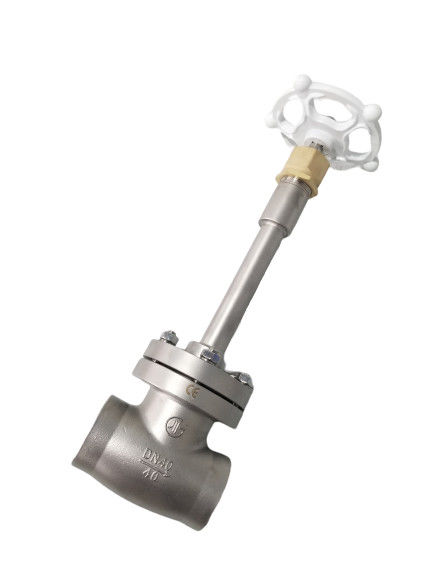

Stainless Steel Globe Valve Description
| Name: Stainless Steel Globe valve | |
| Main technical parameters: | Nominal diameter: DN10-100mm |
| Nominal Pressure: PN5.0MPa | |
| Applicable medium: LO2, LN2, LAr, LNG | |
| Applicable temperature: -196℃~+80℃ | |
| Connecting format:SW | |
| Material: | Body: CF8 |
| Bonnet: 06Cr19NI10 | |
| Stem: 06Cr19NI10 | |
| Packing: PTFE | |
| Disc face ring:PCTFE | |
1. Advanced equipment:
Providing the integration of automation system solutions for product, engineering, service and training with the advanced processing equipment and testing means.
2. Long-term quality warranty time:
Twelve months warranty.
3. Strong team:
Providing professional service for sales and after sales with many senior engineers with plenty of research, development and design experience.
4. Excellent technology:
Having been cooperating with the most famous university in China with the leading-level technology.
5. Good quality:
Reliable and stable quality, good performance, long life time.
6. Certificates:
Passed the ISO9001 certificate as well as CE and ISO, etc.
7. Full series of products:
Covering full category of valves, meeting the general standards of every country in the world, such as GB, DIN, ASTM, BS, JIS.
8. Professional after sales service:
The service was provided by the professional engineer team.
9. Packing:
Packing strictly as per the exporting standard or as per the customized request.
10. Fast delivery time:
Fast delivery time could be guaranteed with the sufficient inventory and efficient production.
Our factory makes the following commitments in terms of after-sales service if your company ordered valves in our company:
1. Our company implements warranty on product quality for twelve months;
2. Once the contract is signed, quality and quantity can be guaranteed and valves will be delivered on time;
3. We ensures that the valves provided meet the standards as long as it is mentioned in the contract;
4. For the technical consultation of the demand side, answers will be given at any time;
5. When delivering the valves, the factory will provide the following materials to the purchaser: delivery list, product certificate, product sample, product instruction manual, technical information;
After the user receives the goods, if there is a letter or phone call about quality problems, we guarantee to reply within 24 hours to solve the problem as soon as possible
Q. Are there any special requirements for OEM purchases?
A. Yes. Liangchuan requires proof of trademark registration in order to print or emboss your trademark onto the product or packaging.
Q. Do Liangchuan products come with a warranty ?
A. Yes. That's why we offer 3-year product life guarantee, and a generous1 year warranty on all purchases that begins with the bill of loading.
Q. How can I get some samples?
A. Usually we don’t offer free sample and express fee are required, the sample cost can be deducted from your first large order.
Q. What's the MOQ of your products?
A. Our MOQ is one (1) piece/set.
Q. Are you a manufacturer with your own factory?
A. Yes, we are the manufacturer for more than 8 years
Material selection of valve stem and fasteners
When the temperature is higher than -100℃, the stem and bolt materials are Ni, Cr-Mo
And other alloy steels, after proper heat treatment, to improve tensile strength and prevent thread bite. When the temperature is lower than -100℃, it is made of austenitic stainless acid-resistant steel.
But 18-8 The acid-resistant steel has low hardness, which will cause the valve stem and the packing to scratch each other and cause leakage at the packing.
Therefore, the surface of the valve stem must be plated with hard chrome (the thickness of the coating is 0.04-0.06mm)
Or nitriding and nickel-phosphorus plating treatment to improve the surface hardness.
In order to prevent the nut and bolt from seizing, the nut is generally made of Mo steel or Ni steel, and the surface of the thread is coated with molybdenum disulfide.
