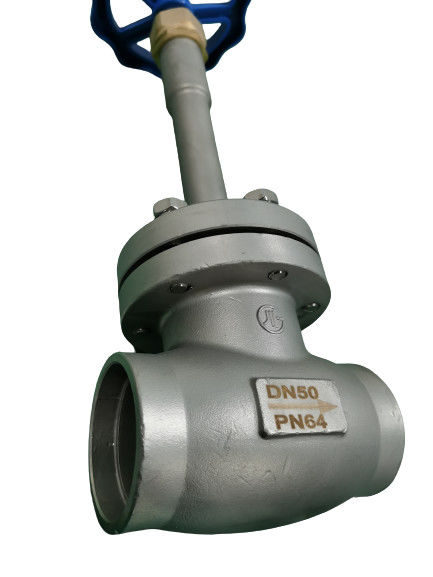

Cryogenic 304 316 PN65 DN50 Socket Weld Globe Valve

Cryogenic 304 316 PN65 DN50 Socket Weld Globe Valve

  • Cryogenic 304 316 PN65 DN50 Socket Weld Globe Valve
  • Cryogenic 304 316 PN65 DN50 Socket Weld Globe Valve
Cryogenic 304 316 PN65 DN50 Socket Weld Globe Valve
Product Details:
Place of Origin: China
Brand Name: CNLN
Certification: CE/ISO
Model Number: Globe valve
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD100-USD500/PC
Packaging Details: Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve;
Delivery Time: 2-3days
Payment Terms: T/T
Supply Ability: 3000pcs per month
Contact Now
Detailed Product Description
Power: Manual Structure: Globe
Working Pressure: 4.0MPa Connection: SW, BW, Flange
Media: LNG LN2 LAr2 Body Material: Stainless Steel
High Light:

DN50 Socket Weld Globe Valve

,

PN65 Socket Weld Globe Valve

,

DN50 Cryogenic globe valves

304 316 PN65 DN50 Cryogenic Socket Weld Globe Valve with Manual Operation

Valve Application

Cryogenic valves are widely used in cryogenic liquid storage and transportation, air separation, oil and gas, food and beverage carbonation, pharmaceuticals, petroleum, chemical,metallurgical,water treatment,aerospace and other industries,such as cryogenic liquid storage tank,tank truck,gasifier,gasification station,air dispersion equipment,air separation plants, petrochemical tail gas separation equipment,pressure swing adsorption oxygen generator,cold boxes,etc.





Why chose us



1.Best quality of products
We can provide products with best quality. We test every valve. Performances of products are certified by the third party and in accordance with the requirements of international and national Standards.



2.Reasonable Price
We always supply the products of best quality with reasonable prices.


3.Quick Response
We reply the customers’ inquiries and questions in time. 4.Creative & Experienced Technical Design
Our technical team is experienced in Cryogenic Industry and our valves are using imported sealing materials and adopting Silica Sol Precision Castings. Our valves have more than 21 patents in Cryogenic Valve Industry.
Valve

Specification:



Item globe valve
Nominal Diameter DN10~200mm
Nominal Pressure PN1.6, 2.5, 4.0, 6.4, 10.0MPa
Flange Standard GB
Connection FR, SW BW, Screw( within 1″)
Bonnet Type Low temperature: +80~ -196℃
Gland Type Bolted Bonnet
Gland Packing Spiral wound gasket/Flexible graphite
Body CF8, CF8M, CF3, CF3M
Trim Single seated, Double seated, Sleeve
Flow Characteristic Linear, Equal percent
Trim Material 304, 316,



Cryogenic 304 316 PN65 DN50 Socket Weld Globe Valve 0



Cryogenic 304 316 PN65 DN50 Socket Weld Globe Valve 1






Cryogenic 304 316 PN65 DN50 Socket Weld Globe Valve 2




Notes When Use


1 . It should ensure that the pipe is blown clean before installation.



2 . When installing, make sure that the flow direction indicated by the arrow on the valve body should be consistent with the flow direction of the fluid.



3 . This valve has been degreased. Store and keep clean when installing.



4 . After the pipeline construction is completed, all the valves on the pipeline should be opened, and the residue in the pipeline should be thoroughly and thoroughly kept to ensure that the pipeline system is clean and free of debris.



5 . The installation system diagram with the oil-free requirements should be degreased.



6 . Slowly open and close during use.



7 . If the precision parts such as the valve disc, valve seat and valve stem are worn or damaged, it must be repaired and replaced in time.



8 . For parts such as gaskets and sealing materials, replace them with new ones each time.
