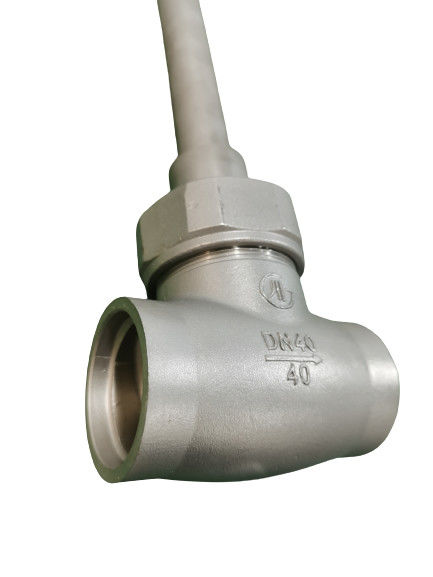

Cryogenic PN40 Low Temperature Globe Valve Socket Weld For O2

Cryogenic PN40 Low Temperature Globe Valve Socket Weld For O2

  • Cryogenic PN40 Low Temperature Globe Valve Socket Weld For O2
  • Cryogenic PN40 Low Temperature Globe Valve Socket Weld For O2
Cryogenic PN40 Low Temperature Globe Valve Socket Weld For O2
Product Details:
Place of Origin: CHINA
Brand Name: CNLN
Certification: CE/ISO
Model Number: CDJ61F
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD83-USD200
Packaging Details: Inner package:plastic bag sealed package Outer package:carton package or wooden case package Or according to customers' demands
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 3000pcs per month
Contact Now
Detailed Product Description
Power: Manual Material: Stainless Steel
Structure: Globe Port Size: 3/8''-10''
Temperature Of Media: -80℃~+80℃ Connection: SW/BW/flange
High Light:

PN40 Low Temperature Globe Valve


O2 Low Temperature Globe Valve


PN40 low temp globe valve

Cryogenic PN40 Low Temperature Globe Valve Socket Weld for O2


Product Description Of Cryogenic Globe Valve

Cryogenic valves are very similar to conventional valves, with the exception of materials and features such as an extended stem. These extended stems allow handles or actuators to be at an ambient temperature.

Cryogenic valves normally refer to valves with working temperature below -110°C, widely used in industrial gas, LNG, LPG and other low temperature applications and regulating or controlling the flow of cryogenic gases, slurries or liquids at low temperatures. These valves come in different shapes and sizes so that they can handle different pressures required by various applications. Some of the common types of cryogenic valves are butterfly valves, relief valves, ball valves and globe valves. The user can manually operate or automate cryogenic valves to handle large systems.



Name: Cryogenic Globe Valve

Main technical parameters:

Nominal diameter: DN10-250mm

Nominal Pressure: PN4.0MPa

Applicable medium: O2, N2, Ar, LNG

Applicable temperature: -80℃~+80℃

Connecting format:


Body: CF8

Bonnet: 06Cr19NI10

Stem: 06Cr19NI10

Packing: PTFE

Disc face ring:PCTFE

After-sales Service For Cryogenic Globe Valve

Our factory makes the following commitments in terms of after-sales service if your company ordered valves in our company:


1. Our company implements warranty on product quality for twelve months;


2. Once the contract is signed, quality and quantity can be guaranteed and valves will be delivered on time;


3. We ensures that the valves provided meet the standards as long as it is mentioned in the contract;


4. For the technical consultation of the demand side, answers will be given at any time;


5. When delivering the valves, the factory will provide the following materials to the purchaser: delivery list, product certificate, product sample, product instruction manual, technical information;

After the user receives the goods, if there is a letter or phone call about quality problems, we guarantee to reply within 24 hours to solve the problem as soon as possible


Cryogenic PN40 Low Temperature Globe Valve Socket Weld For O2 0


About Our Company

Si Chuan Liangchuan Mechanical Equipment Co.,Ltd. is a high-techenterprise with a number of national new technology patents. Our companyadopts advanced technology and production technology,integrates multi-partyresources, deepens the strength of science and technology, and wins the trustand support of customers with high-quality products and services.Our company is committed to the research,development,manufacturing,sales of cryogenic valves,pipeline valves and gas equipments(such ascryogenic liquid storage tanks,tank trucks,cryogenic container). We producehigh-precision products,which are trusted by customers.Products are widelyused in cryogenic liquid storage and transportation,air separation,gas,food,pharmaceutical, petroleum, chemical, metallurgical and other industries.



Q. Are there any special requirements for OEM purchases?
A. Yes. Liangchuan requires proof of trademark registration in order to print or emboss your trademark onto the product or packaging.

Q. Do Liangchuan products come with a warranty ?
A. Yes. That's why we offer 3-year product life guarantee, and a generous1 year warranty on all purchases that begins with the bill of loading.

Q. How can I get some samples?

A. Usually we don’t offer free sample and express fee are required, the sample cost can be deducted from your first large order.

Q. What's the MOQ of your products?

A. Our MOQ is one (5) piece/set.

Q. Are you a manufacturer with your own factory?

A. Yes, we are the manufacturer for more than 8 years

Q:What’s the minimum quantity of order for butterfly valves?

A:You can order even 5 piece,the difference is only the prices,as we must consider all thextra cost for the small order.

Q:What’s the delivery time of your valves?

A:For most of the valves,we have stock of valve parts,it’s possible to deliver in 1-3 weeks.

Q:What’s the warranty of your products?

A:We normally offer 12 months of warranty in service or 18 months since shipping date.

Factors Considered In The Selection Of Valve Sealing Surface Materials

The sealing surface is the most critical working surface of the valve. The quality of the sealing surface directly affects the service life of the valve. The material of the sealing surface is an important factor to ensure the quality of the sealing surface. Therefore, the following factors should be considered when selecting valve sealing surface materials:

①Corrosion resistance.
"Corrosion" is the process in which the sealing surface is damaged under the action of the medium. If the surface is damaged in this way, the sealing performance cannot be guaranteed. Therefore, the sealing surface material must be corrosion resistant. The corrosion resistance of the material mainly depends on the material and its chemical stability.

"Abrasion" refers to the damage caused by friction of the material during the relative movement of the sealing surface. This kind of damage will inevitably cause damage to the sealing surface. Therefore, the sealing surface material must have good scratch resistance, especially for gate valves. The scratch resistance of a material is often determined by the internal properties of the material.

③Erosion resistant.
"Erosion" refers to the process of destroying the sealing surface when the medium flows through the sealing surface at high speed. This kind of damage is more obvious in throttling valves and safety valves used in high-temperature and high-pressure steam media, and has a great impact on the damage of sealing. Therefore, erosion resistance is also one of the important requirements for sealing surface materials.

④ There should be a certain degree of hardness, and the hardness will drop greatly under the specified working temperature.

⑤The coefficient of linear expansion of the sealing surface and the body material should be similar, which is more important for the structure of the inlaid sealing ring, so as to avoid excessive stress and loosening at high temperatures.

⑥Used under high temperature conditions, there must be sufficient anti-oxidation, thermal fatigue resistance and thermal cycle problems.

Under the current situation, it is difficult to find a sealing surface material that fully meets the above requirements. It can only meet certain requirements according to different valve types and uses. For example, valves used in high-speed media should pay special attention to the erosion resistance requirements of the sealing surface; when the medium contains solid impurities, the sealing surface material with higher hardness should be selected.
