|Name: shutt off
|Main technical parameters:
||Nominal diameter: DN10-100mm
|Nominal Pressure: PN4.0MPa
|Applicable medium: LO2, LN2, LAr, LNG
|Applicable temperature: -196℃~+80℃
|Disc face ring:PCTFE
Notes When Use
1 . It should ensure that the pipe is blown clean before installation.
2 . When installing, make sure that the flow direction indicated by the arrow on the valve body should be consistent with the flow direction of the fluid.
3 . This valve has been degreased. Store and keep clean when installing.
4 . After the pipeline construction is completed, all the valves on the pipeline should be opened, and the residue in the pipeline should be thoroughly and thoroughly kept to ensure that the pipeline system is clean and free of debris.
5 . The installation system diagram with the oil-free requirements should be degreased.
6 . Slowly open and close during use.
7 . If the precision parts such as the valve disc, valve seat and valve stem are worn or damaged, it must be repaired and replaced in time.
8 . For parts such as gaskets and sealing materials, replace them with new ones each time.

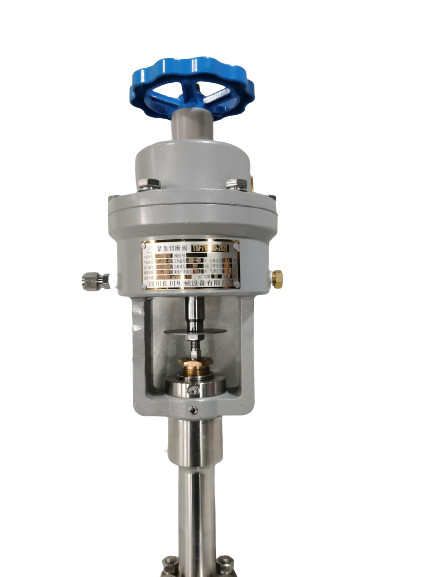

Handwheel Stainless Steel High Pressure Cryogenic Emergency Shut Off Valve
1. If customers have special requirements for products, they must provide the following instructions in the order contract:
a. Structure length
b. Connection Type;
c. Nominal diameter
d. Product use medium and temperature and pressure range;
e. Testing, inspection standards and other requirements.
2. The factory can configure various driving devices according to customer specific requirements.
3. If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract on the condition that the supply and demand sides understand and agree.
4. For futures and ordering customers, please call the letter to tell the valve model, specifications, quantity, delivery time and place in detail. And advance payment of 30% of the total contract amount, the supplier is ready for production.
The company's manual cryogenic shut-off valve is suitable for cutting off and circulating the medium in low temperature storage tanks, tank cars and tank trucks, and can cut off the medium in time when a failure occurs.
This new type of valve has the advantages of simple structure, small size, light weight, good sealing, convenient operation, flexible opening and closing, and wide applicability. It is mainly used for LO2, LN2, LAr, LNG, LHe and other low-temperature media. Explosion-proof function.
Q. Are there any special requirements for OEM purchases?
A. Yes. Liangchuan requires proof of trademark registration in order to print or emboss your trademark onto the product or packaging.
Q. Do Liangchuan products come with a warranty ?
A. Yes. That's why we offer 3-year product life guarantee, and a generous1 year warranty on all purchases that begins with the bill of loading.
Q . Do you support customization?
A . Yes, customization is acceptable.
Q . Can you advise suitable cryogenic valves to me?
A . We have more than 8 years experience in cryogenic field. We are professional in valve selection and will advise you suitable valves with detailed parameters and prices.
Q . How long is your delivery time?
A . It usually takes 5-30 days depending on the quantity of the order and the stock.
