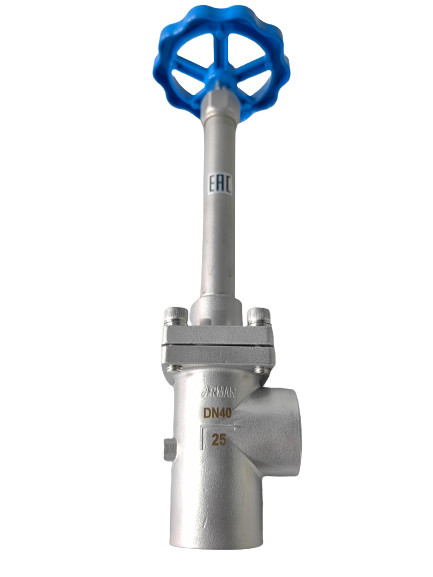

Stainless Steel Manual Cryogenic Long Shaft Angle Globe Valve DN40-ARMAN

Stainless Steel Manual Cryogenic Long Shaft Angle Globe Valve DN40-ARMAN

  • Stainless Steel Manual Cryogenic Long Shaft Angle Globe Valve DN40-ARMAN
Stainless Steel Manual Cryogenic Long Shaft Angle Globe Valve DN40-ARMAN
Product Details:
Place of Origin: China
Brand Name: ARMAN
Certification: CE/ISO
Model Number: Globe valve
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD100-USD500/PC
Packaging Details: Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve;
Delivery Time: 2-3days
Payment Terms: T/T
Supply Ability: 3000pcs per month
Contact Now
Detailed Product Description
Logo: Customize Power: Manual
Structure: Globe Temperature Of Media: Low Temperature
Working Pressure: 5.0MPa Connection: SW, BW, Flange
High Light:

Long Shaft Angle Globe Valve

,

SS Cryogenic Globe Valve

,

BW Cryogenic Globe Valve

Stainless Steel Manual-Cryogenic Long Shaft Angle Globe Valve DN40-ARMAN
Bonnet gasket

Installation instructions for replacement of bonnet gasket



1. pressureless plant

2. open the valve

3. dismantling the headpiece

4. replace the gasket

5. mounting the headpiece

6. screw down bonnet cap screws crosswise



Valve
Name: Globe valve
Main technical parameters: Nominal diameter: DN10-100mm
Nominal Pressure: PN5.0MPa
Applicable medium: LO2, LN2, LAr, LNG
Applicable temperature: -196℃~+80℃
Connecting format:SW
Material: Body: CF8
Bonnet: 06Cr19NI10
Stem: 06Cr19NI10
Packing: PTFE
Disc face ring:PCTFE


Stainless Steel Manual Cryogenic Long Shaft Angle Globe Valve DN40-ARMAN 0Stainless Steel Manual Cryogenic Long Shaft Angle Globe Valve DN40-ARMAN 1





Stainless Steel Manual Cryogenic Long Shaft Angle Globe Valve DN40-ARMAN 2




Stainless Steel Manual Cryogenic Long Shaft Angle Globe Valve DN40-ARMAN 3Stainless Steel Manual Cryogenic Long Shaft Angle Globe Valve DN40-ARMAN 4Stainless Steel Manual Cryogenic Long Shaft Angle Globe Valve DN40-ARMAN 5

After-sales Service

For your company to order valve products in our company, our factory makes the following commitments in terms of after-sales service:



1. Our company implements warranty on product quality;



2. After the contract is signed, guarantee the quality and quantity, and deliver on time;



3. The company ensures that the valve products provided meet the contract targets



4. For technical consultation of the demand side, give answers at any time;



5. When delivering the equipment, the factory delivers the following materials to the purchaser: delivery list, product certificate, product sample, product instruction manual, technical information;

After receiving a letter or a phone call from the user regarding quality issues, we guarantee a response within 24 hours to resolve the issue as quickly as possible

FAQ

Q. Are there any special requirements for OEM purchases?
A. Yes. Liangchuan requires proof of trademark registration in order to print or emboss your trademark onto the product or packaging.

Q. Do Liangchuan products come with a warranty ?
A. Yes. That's why we offer 3-year product life guarantee, and a generous1 year warranty on all purchases that begins with the bill of loading.

Q. How can I get some samples?

A. Usually we don’t offer free sample and express fee are required, the sample cost can be deducted from your first large order.

Q. What's the MOQ of your products?

A. Our MOQ is one (1) piece/set.

Q. Are you a manufacturer with your own factory?

A. Yes, we are the manufacturer for more than 12 years
