Place of Origin:
Cheng du -Sichuan-China
Brand Name:
CNLN/Arman
Certification:
CE/ISO/EAC
Model Number:
CDQJ661F

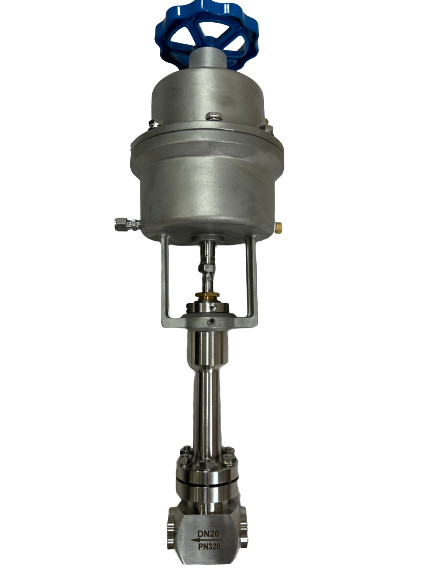

High Pressure Cryogenic Valve is designed for applications involving cryogenic fluids such as liquefied natural gas (LNG), liquid oxygen (LOX), and liquid nitrogen (LN2). This pneumatic-actuated globe valve is made of SS304/316 for strength and durability, and is capable of operating at a pressure range of 10-32Mpa. The valve is designed with PTFE, PCTFE seat material, making it suitable for use with cryogenic fluids.
The high pressure cryogenic valve is suitable for arduous applications, offering reliable operation and superior performance. Its pneumatic design ensures precise control and easy maintenance, making it the perfect choice for any applications involving cryogenic fluids.
| Parameter | Value |
|---|---|
| Valve Size | DN10-250mm |
| Valve Body Material | Stainless Steel, |
| Valve Operation | Pneumatic |
| Actuator Type | Pneumatic |
| Connection Type | Socket Weld, Butt Weld, Etc. |
| Valve Design | Globe Valve |
| Valve Type | High Pressure Cryogenic Emergency Shut-off Valve |
| High Pressure | PM10-32Mpa |
| Temperature Range | -196°C To +80°C |
| Valve Application | LNG/LOX/LN2 |
| Seat Material | PTFE, PCTFE, |
High Pressure Cryogenic Valve, such as CNLN/Arman CDQJ661F, is a type of valve with high pressure resistance and excellent performance for LNG/LOX/LN2. It is made of stainless steel or C, and the seat material can be PTFE, PCTFE, etc. It is mainly used in applications that require PM10-32Mpa, such as in LNG/LOX/LN2. It is mainly used as an emergency shut-off valve in extreme conditions. It is designed with a connection type of socket weld, butt weld, etc. It is highly reliable and durable, making it ideal for use in high-pressure cryogenic applications.
We offer customized high pressure cryogenic valves with brand name CNLN/Arman, model number CDQJ661F. The valve is sourced from Chengdu, Sichuan of China and is suitable for LNG/LOX/LN2/LAR/LIN. It is DN10-250mm in size with connection types like socket weld and butt weld. The seat material is PTFE, PCTFE and valve body material is stainless steel, C. Moreover, the valve is operated through pneumatic means.
High Pressure Cryogenic Valves are securely packaged and shipped to ensure they reach the customer in perfect condition. The valves are carefully inspected before packaging and are placed in protective foam or other packaging materials before being sealed in a sturdy box.
The box is marked with shipping labels indicating the sender, recipient, and contents. It is then placed in a larger box with additional padding and packaging materials, to protect the valves during transit. The box is then secured with tape and labeled according to shipping regulations.
The box is then ready to be collected by the shipping company and delivered to the customer.
