|Place of Origin:||China|
|Model Number:||Globe valve|
|Minimum Order Quantity:||1pc|
|Packaging Details:||Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve;|
|Supply Ability:||3000pcs per month|
|Structure:||Globe||Temperature Of Media:||Low Temperature|
|Working Pressure:||5.0MPa||Connection:||SW, BW, Flange|
Installation instructions for replacement of bonnet gasket
1. pressureless plant
2. open the valve
3. dismantling the headpiece
4. replace the gasket
5. mounting the headpiece
6. screw down bonnet cap screws crosswise

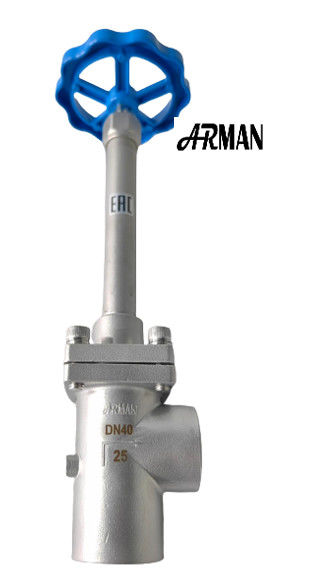

|Name: Globe valve|
|Main technical parameters:||Nominal diameter: DN10-100mm|
|Nominal Pressure: PN5.0MPa|
|Applicable medium: LO2, LN2, LAr, LNG|
|Applicable temperature: -196℃~+80℃|
|Disc face ring:PCTFE
For your company to order valve products in our company, our factory makes the following commitments in terms of after-sales service:
1. Our company implements warranty on product quality;
2. After the contract is signed, guarantee the quality and quantity, and deliver on time;
3. The company ensures that the valve products provided meet the contract targets
4. For technical consultation of the demand side, give answers at any time;
5. When delivering the equipment, the factory delivers the following materials to the purchaser: delivery list, product certificate, product sample, product instruction manual, technical information;
After receiving a letter or a phone call from the user regarding quality issues, we guarantee a response within 24 hours to resolve the issue as quickly as possible
Q. Are there any special requirements for OEM purchases?
A. Yes. Liangchuan requires proof of trademark registration in order to print or emboss your trademark onto the product or packaging.
Q. Do Liangchuan products come with a warranty ?
A. Yes. That's why we offer 3-year product life guarantee, and a generous1 year warranty on all purchases that begins with the bill of loading.
Q. How can I get some samples?
A. Usually we don’t offer free sample and express fee are required, the sample cost can be deducted from your first large order.
Q. What's the MOQ of your products?
A. Our MOQ is one (1) piece/set.
Q. Are you a manufacturer with your own factory?
A. Yes, we are the manufacturer for more than 12 years
