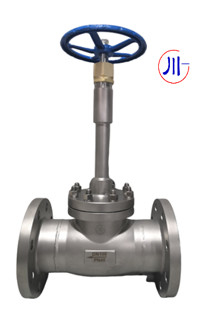

Flanged Connection Long Stem Cryogenic Globe Valves -196C- 80C For Low Temperatures

Flanged Connection Long Stem Cryogenic Globe Valves -196C- 80C For Low Temperatures

  • Flanged Connection Long Stem Cryogenic Globe Valves -196C- 80C For Low Temperatures
Flanged Connection Long Stem Cryogenic Globe Valves -196C- 80C For Low Temperatures
Product Details:
Place of Origin: Cheng du -Sichuan-China
Brand Name: CNLN
Certification: CE,EAC,ISO
Model Number: DJ61F-50P
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden package
Delivery Time: 10 work days
Payment Terms: L/C, T/T, T/T
Contact Now
Detailed Product Description
Size: DN10-100mm Pressure: 5.0Mpa
Operation: Manual, Operation Temperature: -196℃~+80℃
Material: SS304, Stainless Steel, Operatessure: 5.0Mpa
Valve Type: Cryogenic Globe Valve Connection: SW, Butt-Weld,Flanged
High Light:

Long Stem Cryogenic Globe Valves

,

Flanged Connection Cryogenic Globe Valves

,

Stainless Steel Flanged Globe Valve

Product Description:

Flanged Connection Long Stem Cryogenic Globe Valves -196C- 80C Suitable For Low Temperatures

Our Cryogenic Globe Valves are designed to excel in extreme temperature environments. They are constructed from premium quality stainless steel and other materials, providing superior durability and resistance to corrosion. With a pressure rating of up to 5.0Mpa, sizes ranging from DN10 to DN100mm, and a variety of connection types including BW, SW, and cryogenic, our valves are suitable for a wide range of applications.

Our valves have manual, pneumatic, and hydraulic operation options, allowing for easy and precise control over the flow of the medium. All components are tested to the highest industry standards, guaranteeing reliable and consistent performance. Our Cryogenic Globe Valves are designed for maximum efficiency and durability, making them a reliable choice for any cryogenic application.



Features:

  • Product Name: Cryogenic Globe Valve
  • Pressure: 5.0Mpa
  • Operation: Manual, Pneumatic, Hydraulic
  • Valve Type: Cryogenic Globe Valve
  • Operation Temperature: -196℃~+80℃
  • Size: DN10-100mm
  • Material: Stain steel
  • Applicable for LNG, LOX, LNI


Technical Parameters:

Parameter Value
Valve Type Cryogenic Globe Valve
Operation Pressure 5.0Mpa
Size DN10-100mm
Operation Manual, Pneumatic, Hydraulic
Pressure 5.0Mpa
Material SS304, Stainless Steel
Connection SW, Butt-Weld, Flanged
Operation Temperature -196℃~+80℃
For LNG, LOX, LNI Yes
Extended Bonnet Yes
Extended Bonnet Stem Yes


Applications:

Cryogenic globe valves, model number DJ61F-50P, are made of stainless steel and designed with cryogenic temperature (-196℃~+80℃). It is certified by CE, EAC and ISO, and the minimum order quantity is only 1. This product is suitable for connection types of butt-weld (BW) and screwed (SW) with pressure 5.0Mpa. It can be applied in many different areas, such as industrial pipe lines, gas and liquid transportation, chemical and petrochemical plants, and cryogenic systems.

Cryogenic globe valves have superior performance in terms of corrosion and rust resistance, due to their stainless steel material. The connection types of BW and SW make it user-friendly and easy to install, while the CE, EAC and ISO certification guarantee the product quality. It is also a cost-efficient choice with the minimum order quantity of only 1. All these features make cryogenic globe valves the ideal choice for industrial pipe lines, gas and liquid transportation, chemical and petrochemical plants, and cryogenic systems.

Flanged Connection Long Stem Cryogenic Globe Valves -196C- 80C For Low Temperatures 0Flanged Connection Long Stem Cryogenic Globe Valves -196C- 80C For Low Temperatures 1Flanged Connection Long Stem Cryogenic Globe Valves -196C- 80C For Low Temperatures 2



Customization:

We provide customers with custom services for Cryogenic Globe Valves.

The product features include: Brand Name: Cryogenic globe valves; Model Number: DJ61F-50P; Place of Origin: Cheng du -Sichuan-China; Certification: CE,EAC,ISO; Minimum Order Quantity: 1; Material: SS304, Stainless Steel; Connection: SW, Butt-Weld,Flanged; Valve Type: Cryogenic Globe Valve; Operation Temperature: -196℃~+80℃; .

In addition, the extended bonnet design of our Cryogenic Globe Valves provides superior protection against leakage and extended service life.



Support and Services:

Technical Support and Service for Cryogenic Globe Valve

  • Provide customized solutions for cryogenic globe valves
  • Offer 24-hour technical support
  • Provide professional installation guidance
  • Provide timely maintenance and repair services
  • Provide regular inspection and testing services
  • Provide professional technical advice and consultation
