Dn15 To Dn200 Long Stem Globe Valve Cryogenic For LNG Pressure PN40

Dn15 To Dn200 Long Stem Globe Valve Cryogenic For LNG Pressure PN40

Dn15 Long Stem Globe Valve

Dn200 Long Stem Globe Valve

PN40 Cryogenic Globe Valve

Place of Origin:


Brand Name:




Model Number:

Globe valve

Contact Us
Request A Quote
Product Details
Medium Pressure
Stainless Steel
Port Size:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve;
Delivery Time
Payment Terms
Supply Ability
3000pcs per month
Product Description

Dn15 To Dn200 Long Stem Globe Valve Cryogenic for LNG Pressure PN40

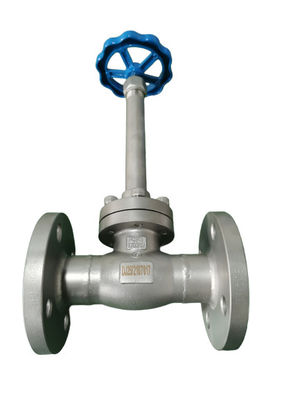

product show


Stop valve advantages

1 . Simple structure, easy to manufacture and maintain.


2 . Small working stroke and short opening and closing time.


3 . Good sealing performance, small friction between sealing surfaces and long life.


The disadvantages of globe valves are as follows:


1 . The fluid resistance is large, and the force required when opening and closing is large.


2 . Not suitable for media with particles, large viscosity and easy to coke.


3 . Poor regulation performance.


The type of globe valve is divided into external thread type and internal thread type according to the position of the stem thread. According to the flow direction of the medium, there are straight-through, direct-current and angular. The shut-off valve is divided into sealing forms, and it has a packing-sealed shut-off valve and a bellows-sealed shut-off valve.


Structure of globe valve:


The structure of the globe valve body has straight-through, DC and right-angle. Straight-through is the most common structure, but its fluid resistance is greatest. DC fluid has low resistance and is mostly used for fluids with solid particles or high viscosity. Right-angle valve bodies are mostly forged, which is suitable for globe valves with smaller passage and higher pressure.



Notes When Use

1 . It should ensure that the pipe is blown clean before installation.


2 . When installing, make sure that the flow direction indicated by the arrow on the valve body should be consistent with the flow direction of the fluid.


3 . This valve has been degreased. Store and keep clean when installing.


4 . After the pipeline construction is completed, all the valves on the pipeline should be opened, and the residue in the pipeline should be thoroughly and thoroughly kept to ensure that the pipeline system is clean and free of debris.


5 . The installation system diagram with the oil-free requirements should be degreased.


6 . Slowly open and close during use.


7 . If the precision parts such as the valve disc, valve seat and valve stem are worn or damaged, it must be repaired and replaced in time.


8 . For parts such as gaskets and sealing materials, replace them with new ones each time.

Dn15 To Dn200 Long Stem Globe Valve Cryogenic For LNG Pressure PN40 0



Dn15 To Dn200 Long Stem Globe Valve Cryogenic For LNG Pressure PN40 1

Valve Package

Dn15 To Dn200 Long Stem Globe Valve Cryogenic For LNG Pressure PN40 2


Q1. What is your MOQ?

Our MOQ is one piece.


Q2. Do you provide sample for customer?
Yes, sample is available.


Q3. Do you do OEM service?
Yes, we accept OEM order and can make customer's LOGO on the products.


Q4. Do you support customization?
Yes, customization is acceptable.


Q5. Can you advise suitable cryogenic valves to me?
We have more than 15 years experience in cryogenic field. We are professional in valve selection and will advise you suitable valves with detailed parameters and prices.


Q6. How long is your delivery time?
It usually takes 5-30 days depending on the quantity of the order and the stock.
